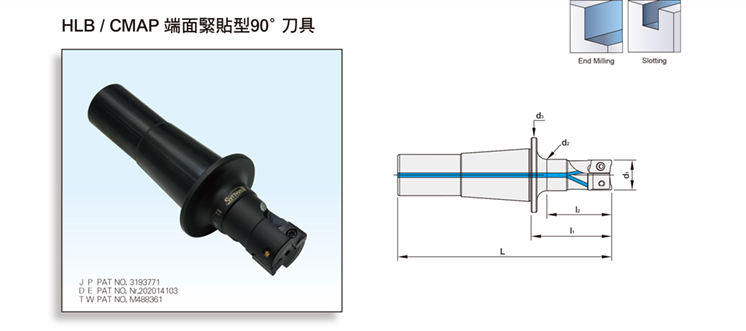

Product Name : HLB/CMAP FACE CONTACT TYPE 90° END MILL CUTTER
Product Introduction
  • Inserts are optional accessories. Needs to be purchased additionally.



MODEL NO.TYPEd1d2d3Ll1l2TEETHINSERT
261.467C.10.040 HLB12xCMAP10-40-1T 10 12 31.75 95 40 32 1 AP..1135
261.467C.12.040 HLB12xCMAP12-40-1T 12 11 31.75 95 40 32 1 AP..1135
261.468C.16.040 HLB12xCMAP16-40-2T 16 16 31.75 95 40 34 2 AP..1135
262.467C.10.040 HLB20xCMAP10-40-1T 10 12 38.1 108 40 32 1 AP..1135
262.467C.12.040 HLB20xCMAP12-40-1T 12 11 38.1 108 40 32 1 AP..1135
262.468C.16.040 HLB20xCMAP16-40-2T 16 16 38.1 108 40 34 2 AP..1135
262.468C.20.040 HLB20xCMAP20-40-2T 20 16.8 38.1 108 40 34 2 AP..1135
262.469C.25.040 HLB20xCMAP25-40-3T 25 23.5 38.1 108 40 34 3 AP..1135
262.470C.25.040 HLB20xCMAP25-40-4T 25 23.5 38.1 108 40 34 4 AP..1135
262.468C.32.040 HLB20xCMAP32-40-2T 32 31.45 38.1 108 40 35 2 AP..1604
262.469C.32.040 HLB20xCMAP32-40-3T 32 31.45 38.1 108 40 35 3 AP..1604
263.467C.10.040 HLB25xCMAP10-40-1T 10 12 44.45 118 40 32 1 AP..1135
263.467C.12.040 HLB25xCMAP12-40-1T 12 11 44.45 118 40 32 1 AP..1135
263.468C.16.040 HLB25xCMAP16-40-2T 16 16 44.45 118 40 34 2 AP..1135
263.468C.20.040 HLB25xCMAP20-40-2T 20 16.8 44.45 118 40 34 2 AP..1135
263.469C.25.040 HLB25xCMAP25-40-3T 25 23.5 44.45 118 40 34 3 AP..1135
263.470C.25.040 HLB25xCMAP25-40-4T 25 23.5 44.45 118 40 34 4 AP..1135
263.468C.32.040 HLB25xCMAP32-40-2T 32 31.45 44.45 118 40 34 2 AP..1604
263.469C.32.040 HLB25xCMAP32-40-3T 32 31.45 44.45 118 40 34 3 AP..1604



ACCESSORIES:

INSERTSCREWWRENCH
AP..1135 M2.5-6.0-3.5-60 T8
AP..1604 M4-10-5.7-60 T15
