Product Name : HBL FACE CONTACT TYPE BALL NOSE FINISH END MILL CUTTER
Product Introduction

●Inserts are optional accessories. Needs to be purchased additionally.

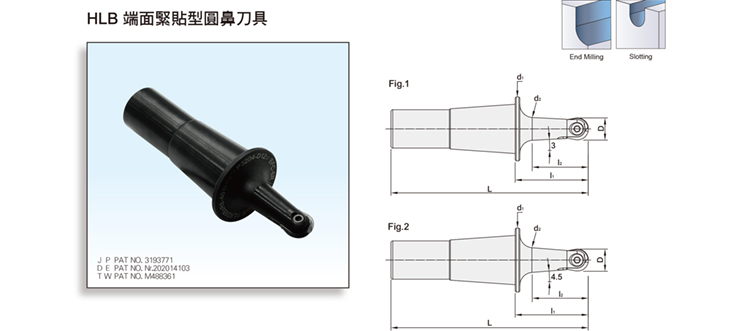

MODEL NO.TYPEDd1d2Ll1l2Fig.INSERTINSERT SCREWWRENCH
261.35.R4.040 HLB12xBFC4-40 8 31.75 9.7 95 40 29.4 1 P3204-D08 P3204-D08 T8
261.35.R4.040D HLB12xBFC4-40D 8 31.75 11.1 95 40 29.4 2 P3204-D08 BFC-4R T8
261.35.R5.040 HLB12xBFC5-40 10 31.75 11.6 95 40 29.4 1 P3204-D10 BFC-5R T15
261.35.R5.040D HLB12xBFC5-40D 10 31.75 12.9 95 40 29.6 2 P3204-D10 BFC-5R T15
261.35.R6.040 HLB12xBFC6-40 12 31.75 12.3 95 40 29.6 1 P3204-D12 BFC-6R T20
261.35.R6.040D HLB12xBFC6-40D 12 31.75 13.3 95 40 29.6 2 P3204-D12 BFC-6R T20
261.35.R8.040 HLB12xBFC8-40 16 31.75 16.4 95 40 29.4 1 P3204-D16 BFC-8R T20
261.35.R8.040D HLB12xBFC8-40D 20 31.75 17.5 95 40 29.6 2 P3204-D16 BFC-8R T20
261.35.R10.040 HLB12xBFC10-40 20 31.75 20.4 95 40 32.3 1 P3204-D20 BFC-10R T20
261.35.R10.040D HLB12xBFC10-40D 20 31.75 21.7 95 40 32.4 2 P3204-D20 BFC-10R T20
261.35.R12.5.040 HLB12xBFC12.5-40 25 31.75 25.6 95 40 36 1 P3204-D25 BFC-12.5R T30
261.35.R12.5.040D HLB12xBFC12.5-40D 25 31.75 26.9 95 40 36.8 2 P3204-D25 BFC-12.5R T30
262.35.R4.040 HLB20xBFC4-40 8 38.1 9.7 108 40 29.4 1 P3204-D08 BFC-4R T8
262.35.R4.040D HLB20xBFC4-40D 8 38.1 11.1 108 40 29.4 2 P3204-D08 BFC-4R T8
262.35.R5.040 HLB20xBFC5-40 10 38.1 11.6 108 40 29.4 1 P3204-D10 BFC-5R T15
262.35.R5.040D HLB20xBFC5-40D 10 38.1 12.9 108 40 29.6 2 P3204-D10 BFC-5R T15
262.35.R6.040 HLB20xBFC6-40 12 38.1 12.3 108 40 29.6 1 P3204-D12 BFC-6R T20
262.35.R6.040D HLB20xBFC6-40D 12 38.1 13.3 108 40 29.6 2 P3204-D12 BFC-6R T20
262.35.R8.040 HLB20xBFC8-40 16 38.1 16.4 108 40 29.4 1 P3204-D16 BFC-8R T20
262.35.R8.040D HLB20xBFC8-40D 16 38.1 17.5 108 40 29.6 2 P3204-D16 BFC-8R T20
262.35.R10.040 HLB20xBFC10-40 20 38.1 20.4 108 40 32.3 1 P3204-D20 BFC-10R T20
262.35.R10.040D HLB20xBFC10-40D 20 38.1 21.7 108 40 32.4 2 P3204-D20 BFC-10R T20
262.35.R12.5.040 HLB20xBFC12.5-40 25 38.1 25.2 108 40 32.3 1 P3204-D25 BFC-12.5R T30
262.35.R12.5.040D HLB20xBFC12.5-40D 25 38.1 26.3 108 40 32.4 2 P3204-D25 BFC-12.5R T30



MODEL NO.TYPEDd1d2Ll1l2Fig.INSERTINSERT SCREWWRENCH
263.35.R4.040 HLB25xBFC4-40 8 44.45 9 118 40 29.5 1 P3204-D08 BFC-4R T8
263.35.R4.040D HLB25xBFC4-40D 8 44.45 10 118 40 29.5 2 P3204-D08 BFC-4R T8
263.35.R5.040 HLB25xBFC5-40 10 44.45 10.7 118 40 29.5 1 P3204-D10 BFC-5R T15
263.35.R5.040D HLB25xBFC5-40D 10 44.45 11.8 118 40 29 2 P3204-D10 BFC-5R T15
263.35.R6.040 HLB25xBFC6-40 12 44.45 12.3 118 40 29 1 P3204-D12 BFC-6R T20
263.35.R6.040D HLB25xBFC6-40D 12 44.45 13.3 118 40 29.6 2 P3204-D12 BFC-6R T20
263.35.R8.040 HLB25xBFC8-40 16 44.45 15.3 118 40 29.5 1 P3204-D16 BFC-8R T20
263.35.R8.040D HLB25xBFC8-40D 16 44.45 16.1 118 40 29.6 2 P3204-D16 BFC-8R T20
263.35.R10.040 HLB25xBFC10-40 20 44.45 18.9 118 40 32.3 1 P3204-D20 BFC-10R T20
263.35.R10.040D HLB25xBFC10-40D 20 44.45 19.5 118 40 32.4 2 P3204-D20 BFC-10R T20
263.35.R12.5.040 HLB25xBFC12.5-40 25 44.45 23.5 118 40 32.3 1 P3204-D25 BFC-12.5R T30
263.35.R12.5.040D HLB25xBFC12.5-40D 25 44.45 23.9 118 40 32.4 2 P3204-D25 BFC-12.5R T30
