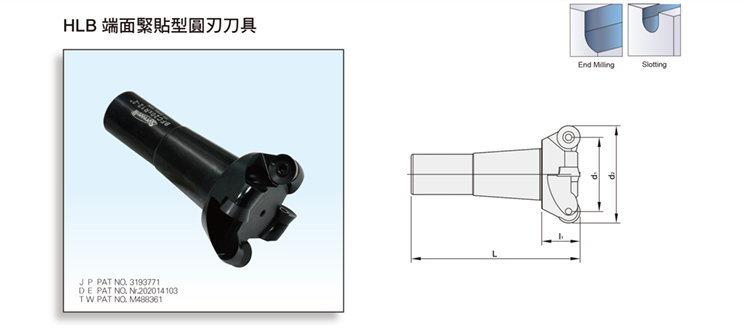

Product Name : HLB FACE CONTACT TYPE BALL NOSE FINISH END MILL CUTTER
Product Introduction
  • EInserts are optional accessories. Needs to be purchased additionally.



W/O Coolant

MODEL NO.TYPEd1d2Ll1TEETHINSERTINSERT SCREWWRENCH
262.35.86.R12 HLB20xR12-2” 38.8 50.8 88 20 4 RD..1204 M4-10-5.7-60 T15
263.35.86.R12 HLB25xR12-2” 38.8 50.8 98 20 4 RD..1204 M4-10-5.7-60 T15



Coolant Thru

MODEL NO.TYPEd1d2Ll1TEETHINSERTINSERT SCREWWRENCH
262.35C.86.R12 HLB20xRC12-2” 38.8 50.8 88 20 4 RD..1204 M4-10-5.7-60 T15
263.35C.86.R12 HLB25xRC12-2” 38.8 50.8 88 20 4 RD..1204 M4-10-5.7-60 T15
