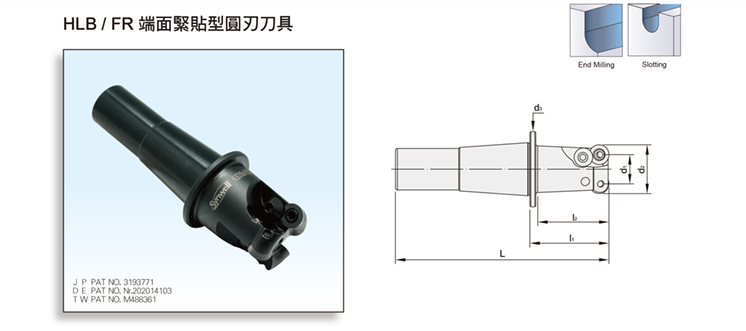

Product Name : HLB/FR FACE CONTACT TYPE BALL NOSE END MILL CUTTER
Product Introduction
  • Inserts are optional accessories. Needs to be purchased additionally.



W/O Coolant

MODEL NO.TYPEd1d2d3Ll1l2TEETHINSERT
262.158.25.040 HLB20xFR25-40 15 25 38.1 108 40 36 2 RP..1003
262.158.30.040 HLB20xFR30-40 20 30 38.1 108 40 36 2 RP..1003
262.158.32.040 HLB20xFR32-40 22 32 38.1 108 40 36 3 RP..1003
262.158.35.040 HLB20xFR35-40 25 35 38.1 108 40 36 3 RP..1003
263.158.25.040 HLB25xFR25-40 15 25 44.45 108 40 36 2 RP..1003
263.158.30.040 HLB25xFR30-40 20 30 44.45 108 40 36 2 RP..1003
263.158.32.040 HLB25xFR32-40 22 32 44.45 108 40 36 3 RP..1003
263.158.35.040 HLB25xFR35-40 25 35 44.45 108 40 36 3 RP..1003



Coolant Thru

MODEL NO.TYPEd1d2d3Ll1l2TEETHINSERT
262.158C.25.040 HLB20xFRC25-40 15 25 38.1 108 40 36 2 RP..1003
262.158C.30.040 HLB20xFRC30-40 20 30 38.1 108 40 36 2 RP..1003
262.158C.32.040 HLB20xFRC32-40 22 32 38.1 108 40 36 3 RP..1003
262.158C.35.040 HLB20xFRC35-40 25 35 38.1 108 40 36 3 RP..1003
263.158C.25.040 HLB25xFRC25-40 15 25 44.45 108 40 36 2 RP..1003
263.158C.30.040 HLB25xFRC30-40 20 30 44.45 108 40 36 2 RP..1003
263.158C.32.040 HLB25xFRC32-40 22 32 44.45 108 40 36 3 RP..1003
263.158C.35.040 HLB25xFRC35-40 25 35 44.45 108 40 36 3 RP..1003



ACCESSORIES:

INSERTSCREWCLAMPCLAMP SCREWWRENCH
RP..1003 M4-1.0-5.7-60 HR-5R M5-0.8P T15
