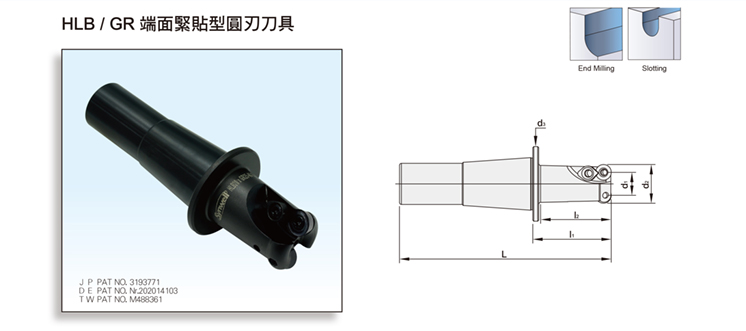

Product Name : HLB/GR FACE CONTACT TYPE BALL NOSE END MILL CUTTER
Product Introduction
  • Inserts are optional accessories. Needs to be purchased additionally.



W/O Coolant

MODEL NO.TYPEd1d2d3Ll1l2TEETHINSERT
262.260.20.040 HLB20xGR20-40 12 20 38.1 108 40 36 2 RD..0802
262.260.25.040 HLB20xGR25-40 15 25 38.1 108 40 36 2 RD..10T3
262.260.30.040 HLB20xGR30-40 20 30 38.1 108 40 36 2 RD..10T3
262.260.32.040 HLB20xGR32-40 22 32 38.1 108 40 36 3 RD..10T3
262.260.35.040 HLB20xGR35-40 25 35 38.1 108 40 36 3 RD..10T3
263.260.20.040 HLB25xGR20-40 12 20 44.45 118 40 36 2 RD..0802
263.260.25.040 HLB25xGR25-40 15 25 44.45 118 40 36 2 RD..10T3
263.260.30.040 HLB25xGR30-40 20 30 44.45 118 40 36 3 RD..10T3
263.260.32.040 HLB25xGR32-40 22 32 44.45 118 40 36 3 RD..10T3
263.260.35.040 HLB25xGR35-40 25 35 44.45 118 40 36 3 RD..10T3



Coolant Thru

MODEL NO.TYPEd1d2d3Ll1l2TEETHINSERT
262.260C.20.040 HLB20xGRC20-40 12 20 38.1 108 40 36 2 RD..0802
262.260C.25.040 HLB20xGRC25-40 15 25 38.1 108 40 36 2 RD..10T3
262.260C.30.040 HLB20xGRC30-40 20 30 38.1 108 40 36 2 RD..10T3
262.260C.32.040 HLB20xGRC32-40 22 32 38.1 108 40 36 3 RD..10T3
262.260C.35.040 HLB20xGRC35-40 25 35 38.1 108 40 36 3 RD..10T3
263.260C.20.040 HLB25xGRC20-40 12 20 44.45 118 40 36 2 RD..0802
263.260C.25.040 HLB25xGRC25-40 15 25 44.45 118 40 36 2 RD..10T3
263.260C.30.040 HLB25xGRC30-40 20 30 44.45 118 40 36 3 RD..10T3
263.260C.32.040 HLB25xGRC32-40 22 32 44.45 118 40 36 3 RD..10T3
263.260C.35.040 HLB25xGRC35-40 25 35 44.45 118 40 36 3 RD..10T3



ACCESSORIES:

INSERTSCREWWRENCHCLAMPCLAMP SCREWCLAMP WRENCH
RD..0802 M3-6.0-3.7-43 T10 GR-5R M3.5-8.0-5.5-60 T15
RD..10T3 M4-10-5.0-43 T15 GR-5R M3.5-8.0-5.5-60 T15
