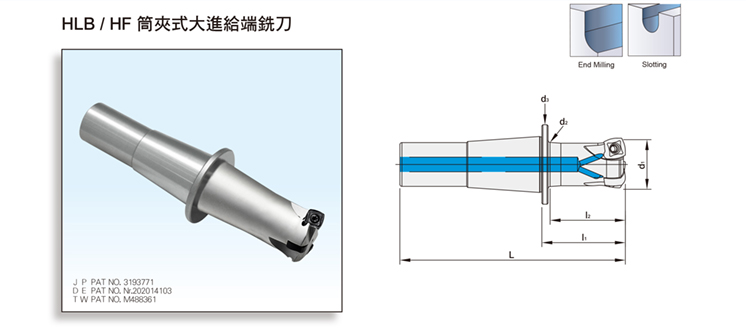

Product Name : HLB/HF POWERLOC SQUARE SHANK HIGH-FEED END MILLS
Product Introduction
  • Inserts are optional accessories. Needs to be purchased additionally.



MODEL NO.TYPELl1l2d1d2d3TEETHINSERT
262.269.25.040 HLB20xHF25-40-3T 107.3 40 35.2 25 20.918 38.1 3 SNKX09T3
262.269.32.040 HLB20xHF32-40-3T 107.3 40 35.2 32 27.919 38.1 3 SNKX09T3
262.270.32.040 HLB20xHF32-40-4T 107.3 40 35.2 32 27.919 38.1 4 SNKX09T3
263.269.25.040 HLB25xHF25-40-3T 117.3 40 35.2 25 20.918 44.45 3 SNKX09T3
263.269.32.040 HLB25xHF32-40-3T 117.3 40 35.2 32 27.919 44.45 3 SNKX09T3
263.270.32.040 HLB25xHF32-40-4T 117.3 40 35.2 32 27.919 44.45 4 SNKX09T3



ACCESSORIES:

INSERTSCREWWRENCH
SNKX09T3 M3.5-9.3-4.8-60 T5
