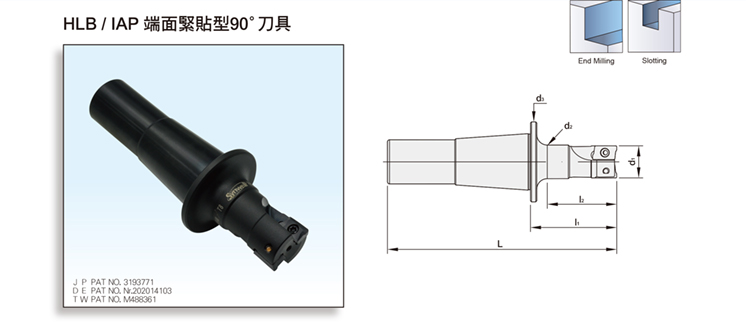

Product Name : HLB/IAP FACE CONTACT TYPE 90° END MILL CUTTER
Product Introduction
  • Inserts are optional accessories. Needs to be purchased additionally.



MODEL NO.TYPEd1d2d3Ll1l2TEETHINSERT
261.243.10.040 HLB12xIAP10-40-1T 10 12 31.75 95 40 32 1 AP..1003
261.243.12.040 HLB12xIAP12-40-1T 12 12 31.75 95 40 32 1 AP..1003
261.244.16.040 HLB12xIAP16-40-2T 16 16 31.75 95 40 32 2 AP..1003
262.243.10.040 HLB20xIAP10-40-1T 10 12 38.1 108 40 32 1 AP..1003
262.243.12.040 HLB20xIAP12-40-1T 12 12 38.1 108 40 32 1 AP..1003
262.244.16.040 HLB20xIAP16-40-2T 16 16 38.1 108 40 32 2 AP..1003
262.244.20.040 HLB20xIAP20-40-2T 20 20 38.1 108 40 32 2 AP..1003
262.245.20.040 HLB20xIAP20-40-3T 20 20 38.1 108 40 32 3 AP..1003
262.244.25.040 HLB20xIAP25-40-2T 25 25 38.1 108 40 32 2 AP..1003
262.245.25.040 HLB20xIAP25-40-3T 25 25 38.1 108 40 32 3 AP..1003
262.246.25.040 HLB20xIAP25-40-4T 25 25 38.1 108 40 32 4 AP..1003
262.244.32.040 HLB20xIAP32-40-2T 32 30.8 38.1 108 40 35 2 AP..1604
262.245.32.040 HLB20xIAP32-40-3T 32 30.8 38.1 108 40 35 3 AP..1604
263.243.10.040 HLB25xIAP10-40-1T 10 12 44.45 118 40 32 1 AP..1003
263.243.12.040 HLB25xIAP12-40-1T 12 12 44.45 118 40 32 1 AP..1003
263.244.16.040 HLB25xIAP16-40-2T 16 16 44.45 118 40 32 2 AP..1003
263.244.20.040 HLB25xIAP20-40-2T 20 20 44.45 118 40 32 2 AP..1003
263.245.20.040 HLB25xIAP20-40-3T 20 20 44.45 118 40 32 3 AP..1003
263.244.25.040 HLB25xIAP25-40-2T 25 25 44.45 118 40 34 2 AP..1003
263.245.25.040 HLB25xIAP25-40-3T 25 25 44.45 118 40 34 3 AP..1003
263.246.25.040 HLB25xIAP25-40-4T 25 25 44.45 118 40 34 4 AP..1003
263.244.32.040 HLB25xIAP32-40-2T 32 30.8 44.45 118 40 34 2 AP..1604
263.245.32.040 HLB25xIAP32-40-3T 32 30.8 44.45 118 40 34 3 AP..1604



ACCESSORIES:

INSERTSCREWWRENCH
AP..1003 M2.5-6.45-3.7-60 T8
AP..1604 M4-10-5.7-60 T15
