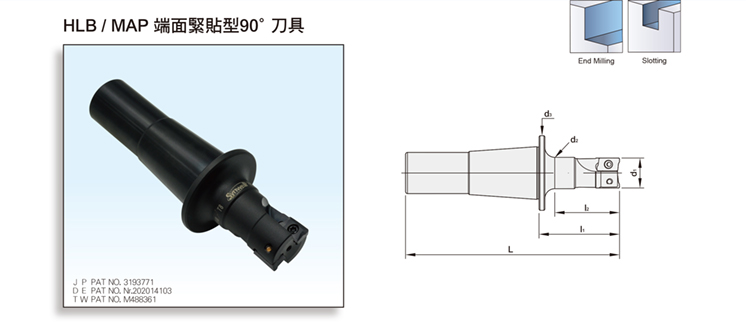

Product Name : HLB/MAP FACE CONTACT TYPE 90° END MILL CUTTER
Product Introduction
  • Inserts are optional accessories. Needs to be purchased additionally.



MODEL NO.TYPEd1d2d3Ll1l2TEETHINSERT
261.467.10.040 HLB12xMAP10-40-1T 10 12 31.75 95 40 32 1 AP..1135
261.467.12.040 HLB12xMAP12-40-1T 12 11 31.75 95 40 32 1 AP..1135
261.468.16.040 HLB12xMAP16-40-2T 16 16 31.75 95 40 34 2 AP..1135
262.467.10.040 HLB20xMAP10-40-1T 10 12 38.1 108 40 32 1 AP..1135
262.467.12.040 HLB20xMAP12-40-1T 12 11 38.1 108 40 32 1 AP..1135
262.468.16.040 HLB20xMAP16-40-2T 16 16 38.1 108 40 34 2 AP..1135
262.468.20.040 HLB20xMAP20-40-2T 20 16.8 38.1 108 40 34 2 AP..1135
262.469.25.040 HLB20xMAP25-40-3T 25 23.5 38.1 108 40 34 3 AP..1135
262.470.25.040 HLB20xMAP25-40-4T 25 23.5 38.1 108 40 34 4 AP..1135
262.468.32.040 HLB20xMAP32-40-2T 32 31.45 38.1 108 40 35 2 AP..1604
262.469.32.040 HLB20xMAP32-40-3T 32 31.45 38.1 108 40 35 3 AP..1604
263.467.10.040 HLB25xMAP10-40-1T 10 12 44.45 118 40 32 1 AP..1135
263.467.12.040 HLB25xMAP12-40-1T 12 11 44.45 118 40 32 1 AP..1135
263.468.16.040 HLB25xMAP16-40-2T 16 16 44.45 118 40 34 2 AP..1135
263.468.20.040 HLB25xMAP20-40-2T 20 16.8 44.45 118 40 34 2 AP..1135
263.469.25.040 HLB25xMAP25-40-3T 25 23.5 44.45 118 40 34 3 AP..1135
263.470.25.040 HLB25xMAP25-40-4T 25 23.5 44.45 118 40 34 4 AP..1135
263.468.32.040 HLB25xMAP32-40-2T 32 31.45 44.45 118 40 34 2 AP..1604
263.469.32.040 HLB25xMAP32-40-3T 32 31.45 44.45 118 40 34 3 AP..1604



ACCESSORIES:

INSERTSCREWWRENCH
AP..1135 M2.5-6.0-3.5-60 T8
AP..1604 M4-10-5.7-60 T15
