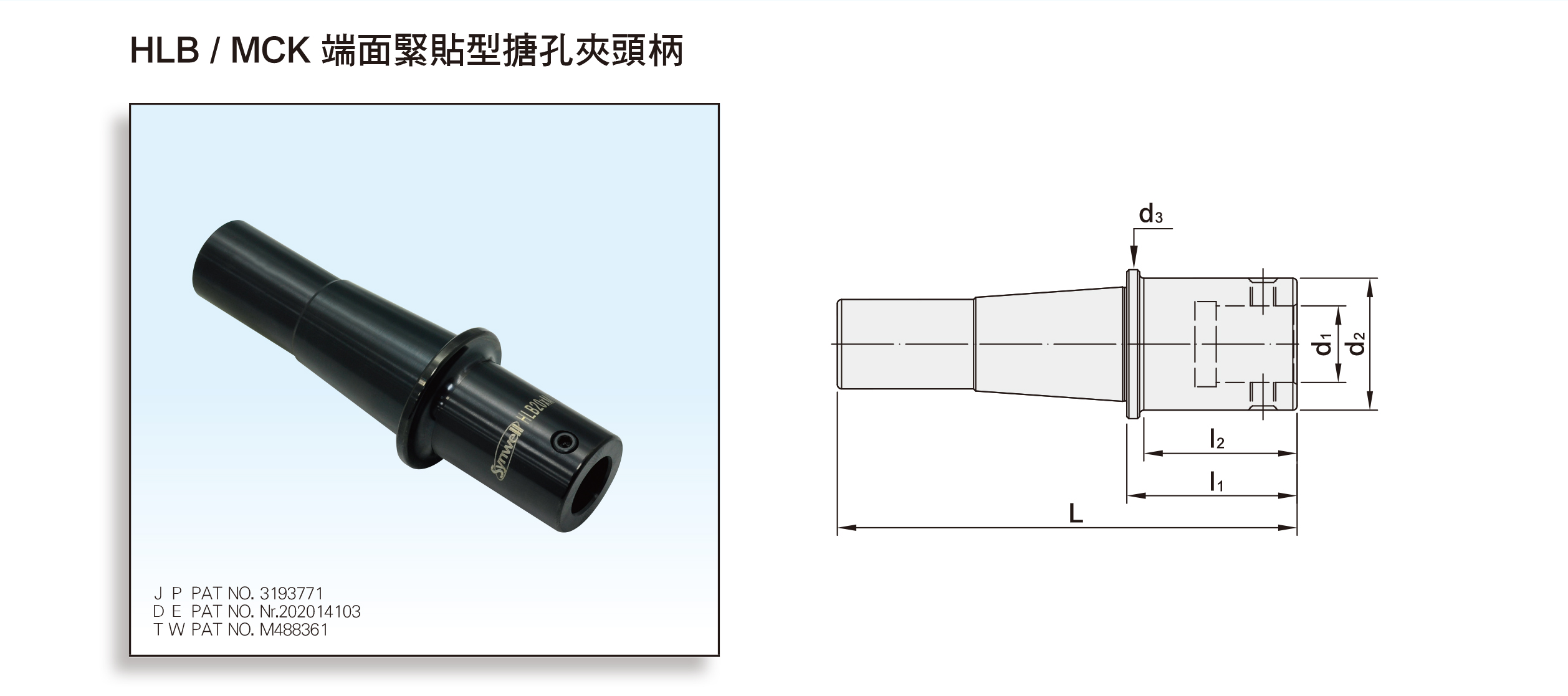

Product Name : HLB/MCK FACE CONTACT TYPE BORING HEAD SHANK
Product Introduction



MODEL NO.TYPELl1l2d1d2d3T
262.487.01.040 HLB20xMCK1-40 108 40 34 11 19 38.1 M4x0.5P
262.487.02.040 HLB20xMCK2-40 108 40 34 14 23.5 38.1 M5x0.5P
262.487.03.040 HLB20xMCK3-40 108 40 30 18 31 38.1 M6x0.75P
263.487.01.040 HLB25xMCK1-40 118 40 34 11 19 44.45 M4x0.5P
263.487.02.040 HLB25xMCK2-40 118 40 34 14 23.5 44.45 M5x0.5P
263.487.03.040 HLB25xMCK3-40 118 40 30 18 31 44.45 M6x0.75P
