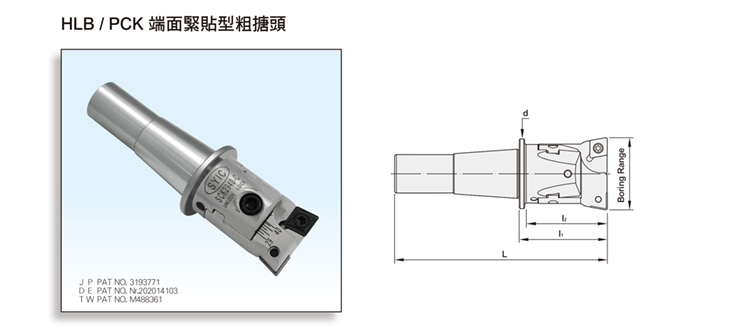

Product Name : HLB/PCK FACE CONTACT TYPE ROUGH BORING HEAD
Product Introduction

●Inserts are optional accessories. Needs to be purchased additionally.



MODEL NO.TYPEBORING RANGEdLl1l2INSERT
MIN.MAX.
262.650.24.068 HLB20xPCK2430-68 24 30 38.1 141 73 68 CC..0602
262.650.29.084 HLB20xPCK2940-84 29 40 38.1 157 89 84 CC..09T3
262.650.39.090 HLB20xPCK3950-90 39 50 38.1 163 95 90 CC..09T3
263.650.24.068 HLB25xPCK2430-68 24 30 44.45 151 73 68 CC..0602
263.650.29.084 HLB25xPCK2940-84 29 40 44.45 167 89 84 CC..09T3
263.650.39.090 HLB25xPCK3950-90 39 50 44.45 173 95 90 CC..09T3
263.650.49.090 HLB25xPCK4965-90 49 65 44.45 171.5 93.5 90 CC..1204



ACCESSORIES:

INSERTSCREWWRENCH
CC..0602 M2.5-6.45-3.7 T8
CC..09T3 M4-10-5.7-4.3 T15
CC..1204 M5-11-7.5-60 T20
