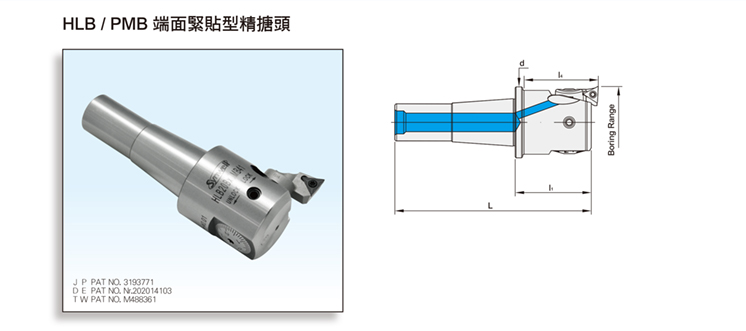

Product Name : HLB/PMB FACE CONTACT TYPE FINISH BORING HEAD
Product Introduction
  • The body of SMB Finish Boring Head is always designed to have coolant outlet.
  • There are 3 types of insert seats and the boring range ofinsert seat can be enlarged by exchanging another insert seat.
  • For example: there are different boring ranges for different insert seats of SMB25.
  • Inserts are optional accessories. Needs to be purchased additionally.



TYPES FOR INSERT SEAT:

TYPEDRAWING FINISHSUITABLE FINISH BORINGTYPEDRAWING FINISHSUITABLE FINISH BORING
SIC25-1 PMB25 SIC25-1E PMB25
SIC25-2 PMB25 SIC25-2E PMB25
SIC25-3 PMB25 SIC25-3E PMB25
SIC32-1 PMB32 SIC32-1E PMB32
SIC32-2 PMB32 SIC32-2E PMB32
SIC32-3 PMB32 SIC32-3E PMB32
SIC41-1 PMB41 SIC41-1E PMB41
SIC41-2 PMB41 SIC41-2E PMB41
SIC41-3 PMB41 SIC41-3E PMB41
SIC53-1 PMB53 SIC53-1E PMB53
SIC53-2 PMB53 SIC53-2E PMB53
SIC53-3 PMB53 SIC53-3E PMB53
SIC68-1 PMB68,PMB100 SIC68-1E PMB68,PMB100
SIC68-2 PMB68,PMB101 SIC68-2E PMB68,PMB101
SIC68-3 PMB68,PMB102 SIC68-3E PMB68,PMB102



STANDARD INSERT SEATOPTIONAL INSERT SEAT
SIC25 - 1 SIC25 - 2 SIC25 - 3
ø25 ~ ø33 ø32 ~ ø40 ø39 ~ ø49



  • SYIC_-1 insert seat is a standard accessory.
  • SYIC_-2 and SYIC_-3 insert seats are optional accessories and need to be purchased additionally.



MODEL NO.TYPEINSERT SEATINSERTBORING RANGEdLl1l2
262.657.25.068 HLB20xPMB25-68 SIC25 - 1 TB..06 / TP..08 25 ~ 33 38.1 138 70 68
262.657.25.068 HLB20xPMB25-68 SIC25 - 2 TB..06 / TP..08 32 ~ 40 38.1 138 70 68
262.657.25.068 HLB20xPMB25-68 SIC25 - 3 TB..06 / TP..08 39 ~ 47 38.1 138 70 68
262.657.32.084 HLB20xPMB32-84 SIC32 - 1 TB..06 / TP..08 32 ~ 42 38.1 151 83 84
262.657.32.084 HLB20xPMB32-84 SIC32 - 2 TB..06 / TP..08 41 ~ 51 38.1 151 83 84
262.657.32.084 HLB20xPMB32-84 SIC32 - 3 TB..06 / TP..08 50 ~ 60 38.1 151 83 84
262.657.41.090 HLB20xPMB41-90 SIC41 - 1 TP..09 / TC..11 41 ~ 54 38.1 157 89 90
262.657.41.090 HLB20xPMB41-90 SIC41 - 2 TP..09 / TC..11 50 ~ 63 38.1 157 89 90
262.657.41.090 HLB20xPMB41-90 SIC41 - 3 TP..09 / TC..11 61 ~ 74 38.1 157 89 90
263.657.25.068 HLB25xPMB25-68 SIC25 - 1 TB..06 / TP..08 25 ~ 33 44.45 148 70 68
263.657.25.068 HLB25xPMB25-68 SIC25 - 2 TB..06 / TP..08 32 ~ 40 44.45 148 70 68
263.657.25.068 HLB25xPMB25-68 SIC25 - 3 TB..06 / TP..08 39 ~ 47 44.45 148 70 68
263.657.32.084 HLB25xPMB32-84 SIC32 - 1 TB..06 / TP..08 32 ~ 42 44.45 161 83 84
263.657.32.084 HLB25xPMB32-84 SIC32 - 2 TB..06 / TP..08 41 ~ 51 44.45 161 83 84
263.657.32.084 HLB25xPMB32-84 SIC32 - 3 TB..06 / TP..08 50 ~ 60 44.45 161 83 84
263.657.41.090 HLB25xPMB41-90 SIC41 - 1 TP..09 / TC..11 41 ~ 54 44.45 168 90 90
263.657.41.090 HLB25xPMB41-90 SIC41 - 2 TP..09 / TC..11 50~ 63 44.45 168 90 90
263.657.41.090 HLB25xPMB41-90 SIC41 - 3 TP..09 / TC..11 61~ 74 44.45 168 90 90



ACCESSORIES:

INSERTSCREWWRENCHINSERTSCREWWRENCH
TB..0601 M2-5.0-2.7-60 T6 TP..0902 M2.5-6.0-3.5-60 T8
TP..0802 M2-5.0-2.7-60 T6 TC..1102 M2.5-6.0-3.5-60 T8
