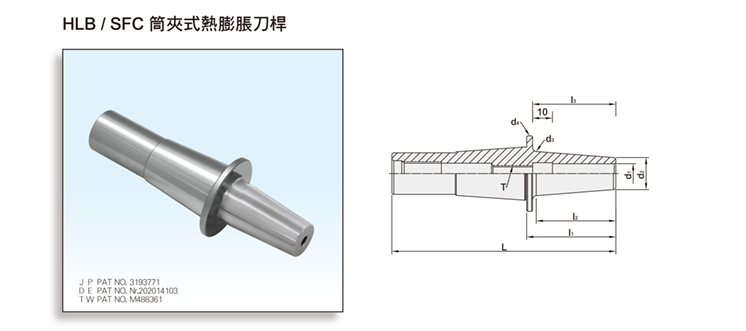

Product Name : HLB/SFC COLLET TYPE SHRINK FIT CHUCK
Product Introduction
MODEL NO.TYPELl1l2l3d1d2d3d4T
261.651.03.045 HLB12xSFC3-45 100 45 40.1 18 3 9 15.3 31.75 -
261.651.04.045 HLB12xSFC4-45 100 45 40.1 20 4 10 16.3 31.75 -
261.651.05.045 HLB12xSFC5-45 100 45 40.1 20 5 11 17.3 31.75 M4x0.7P
261.651.06.045 HLB12xSFC6-45 100 45 40.1 36 6 12 18.3 31.75 M5x0.8P
261.651.08.045 HLB12xSFC8-45 100 45 40.1 36 8 14 20.3 31.75 M6x1.0P
261.651.10.045 HLB12xSFC10-45 100 45 40.1 42 10 16 22.3 31.75 M8x1.25P
262.651.03.045 HLB20xSFC3-45 113 45 40.1 18 3 9 15.3 38.1 -
262.651.04.045 HLB20xSFC4-45 113 45 40.1 20 4 10 16.3 38.1 -
262.651.05.045 HLB20xSFC5-45 113 45 40.1 20 5 11 17.3 38.1 M4x0.7P
262.651.06.045 HLB20xSFC6-45 113 45 40.1 36 6 12 18.3 38.1 M5x0.8P
262.651.08.045 HLB20xSFC8-45 113 45 40.1 36 8 14 20.3 38.1 M6x1.0P
262.651.10.045 HLB20xSFC10-45 113 45 40.1 42 10 16 22.3 38.1 M8x1.25P
262.651.12.045 HLB20xSFC12-45 113 45 40.1 47 12 18 24.3 38.1 M10x1.5P
263.651.03.045 HLB25xSFC3-45 123 45 40.1 18 3 9 15.3 44.45 -
263.651.04.045 HLB25xSFC4-45 123 45 40.1 20 4 10 16.3 44.45 -
263.651.05.045 HLB25xSFC5-45 123 45 40.1 20 5 11 17.3 44.45 M4x0.7P
263.651.06.045 HLB25xSFC6-45 123 45 40.1 36 6 12 18.3 44.45 M5x0.8P
263.651.08.045 HLB25xSFC8-45 123 45 40.1 36 8 14 20.3 44.45 M6x1.0P
263.651.10.045 HLB25xSFC10-45 123 45 40.1 42 10 16 22.3 44.45 M8x1.25P
263.651.12.045 HLB25xSFC12-45 123 45 40.1 47 12 18 24.3 44.45 M10x1.5P
263.651.14.045 HLB25xSFC14-45 123 45 40.1 47 14 20 26.3 44.45 M10x1.5P
263.651.16.045 HLB25xSFC16-45 128 50 45.1 50 16 22 29.1 44.45 M12x1.75P
263.651.18.045 HLB25xSFC18-45 128 50 45.1 50 18 24 32.1 44.45 M12x1.75P
263.651.20.045 HLB25xSFC20-45 128 50 45.1 50 20 26 35.1 44.45 M12x1.75P
