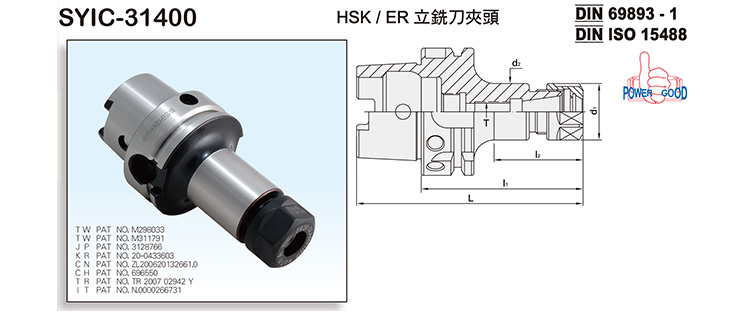

Product Name : HSK/ER COLLET CHUCK FOR TYPE A
Product Introduction
  • Every tool holder reaches revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • It can clamp any straight cutting tools.
  • Revolution of every tool holder is checked by a balancing machine.



MODEL NO.TYPE l1Ll2d1d2TSIZE RANGEWEIGHT (KGS)
SYIC - 31378 HSK40A x ER20A - 80 100 59 34 32 M10 x 1.5P 1.0 ~ 13 0.35
SYIC - 31384 HSK40A x ER25 - 80 100 59 42 32 M10 x 1.5P 1.0 ~ 10 0.4
SYIC - 31402 HSK50A x ER16A - 80 105 49 28 28 M10 x 1.5P 1.0 ~ 10 0.5
SYIC - 31404 HSK50A x ER16A - 100 125 71 28 28 M10 x 1.5P 1.0 ~ 10 0.55
SYIC - 31406 HSK50A x ER16A - 120 145 91 28 28 M10 x 1.5P 1.0 ~ 10 0.7
SYIC - 31408 HSK50A x ER20A - 80 105 53 34 34 M12 x 1.75P 1.0 ~ 13 0.6
SYIC - 31410 HSK50A x ER20A - 100 125 71 34 34 M12 x 1.75P 1.0 ~ 13 0.65
SYIC - 31412 HSK50A x ER20A - 120 145 91 34 34 M12 x 1.75P 1.0 ~ 13 0.7
SYIC - 31414 HSK50A x ER25 - 80 105 53 42 40 M16 x 2.0P 1.0 ~ 16 0.7
SYIC - 31416 HSK50A x ER25 - 100 125 73 42 42 M16 x 2.0P 1.0 ~ 16 0.8
SYIC - 31418 HSK50A x ER25 - 135 160 108 42 42 M16 x 2.0P 1.0 ~ 16 0.9
SYIC - 31420 HSK50A x ER32 - 100 125 73 50 50 M16 x 2.0P 2.0 ~ 20 1.35
SYIC - 31422 HSK50A x ER32 - 135 160 108 50 50 M16 x 2.0P 2.0 ~ 20 1.5
SYIC - 31424 HSK50A x ER32 - 160 185 133 50 50 M16 x 2.0P 2.0 ~ 20 1.7
SYIC - 31432 HSK63A x ER16A - 80 112 44 28 28 M10 x 1.5P 1.0 ~ 10 1
SYIC - 31434 HSK63A x ER16A - 100 132 64 28 28 M10 x 1.5P 1.0 ~ 10 1.1
SYIC - 31436 HSK63A x ER16A - 120 152 84 28 28 M10 x 1.5P 1.0 ~ 10 1.7
SYIC - 31438 HSK63A x ER16A - 160 192 124 28 28 M10 x 1.5P 1.0 ~ 10 1.9
SYIC - 31440 HSK63A x ER20A - 80 112 49 34 34 M12 x 1.75P 1.0 ~ 13 1.6
SYIC - 31442 HSK63A x ER20A - 100 132 66 34 34 M12 x 1.75P 1.0 ~ 13 1.7
SYIC - 31444 HSK63A x ER20A - 120 152 91 34 34 M12 x 1.75P 1.0 ~ 13 1.8
SYIC - 31446 HSK63A x ER20A - 160 192 131 34 34 M12 x 1.75P 1.0 ~ 13 2
SYIC - 31448 HSK63A x ER25 - 80 112 49 42 42 M16 x 2.0P 1.0 ~ 16 1.7
SYIC - 31450 HSK63A x ER25 - 100 132 69 42 42 M16 x 2.0P 1.0 ~ 16 1.8
SYIC - 31452 HSK63A x ER25 - 120 152 89 42 42 M16 x 2.0P 1.0 ~ 16 2
SYIC - 31454 HSK63A x ER25 - 150 182 119 42 42 M16 x 2.0P 1.0 ~ 16 2.3
