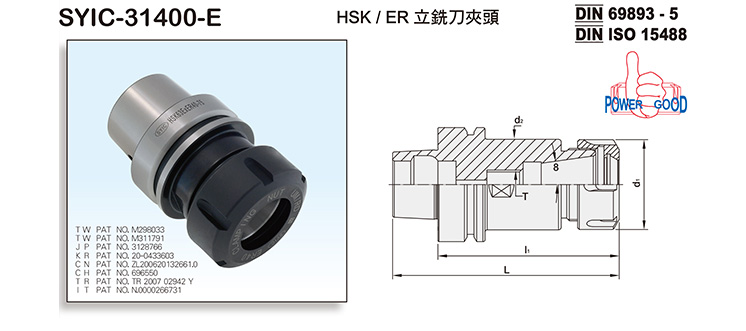

Product Name : HSK/ER COLLET CHUCK FOR TYPE E
Product Introduction
  • Shank is overall ground and is done with balance.
  • Every tool holder reaches the revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ld1d2 MAX.TSIZE RANGEWEIGHT (KGS)
SYIC - 31376 - E HSK40E x ER16A - 65 85 28 34 M10 x1.5P 1.0 ~ 10 0.35
SYIC - 31378 - E HSK40E x ER20A - 60 80 34 34 - 1.0 ~ 13 0.35
SYIC - 31380 - E HSK40E x ER20A - 100 120 34 34 M10 x 1.5P 1.0 ~ 13 0.45
SYIC - 31383 - E HSK40E x ER25 - 75 95 42 34 M10 x 1.5P 1.0 ~ 16 0.4
SYIC - 31386 - E HSK40E x ER32 - 100 120 50 34 M16 x 2.0P 2.0 ~ 20 0.92
SYIC - 31402 - E HSK50E x ER16A - 80 105 28 42 M10 x 1.5P 1.0 ~ 10 0.5
SYIC - 31408 - E HSK50E x ER20A - 80 105 34 42 M12 x 1.75P 1.0 ~ 13 0.6
SYIC - 31419 - E HSK50E x ER32 - 85 110 50 42 - 2.0 ~ 20 1.3
SYIC - 31456 - E HSK63E x ER32 - 90 122 50 53 M16 x 2.0P 2.0 ~ 20 2.5
SYIC - 31467 - E HSK63E x ER40 - 75 107 63 53 - 3.0 ~ 26 2.65
SYIC - 31472 - E HSK63E x ER40 - 120 152 63 53 M20 x 2.0P 3.0 ~ 26 2.77
