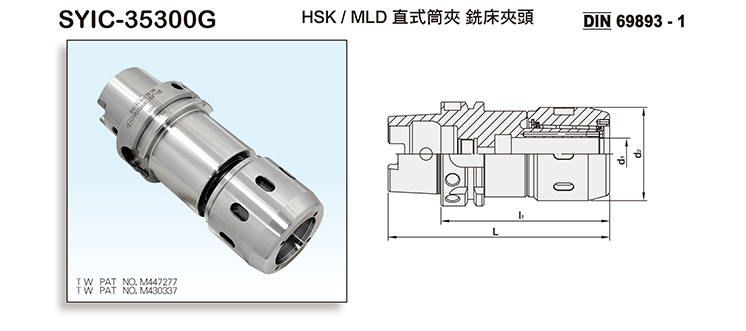

Product Name : HSK/MLD MULTI-LOCK MILLING CHUCK
Product Introduction
  • There is a special design for the slots of internal hole. It prevents the cutting tools from slipping and increases the clamping power.
  • The body of the tool holder is thick, so it has good clamping power. It adopts the needle bearing design to prevent the slipping. The operation is convenient and easy.
  • After locking the cutting tool (The tolerance of the cutting tool must be less than h6), it is more contacted with the flange while locking the clamping nut and tool holder. It can prevent the bearing cage from deformation easily. Also, rigidity and dust-proof function is improved.
  • High stability of the precision and easy for combination. There won’t be a situation of vibration during the high speed processing or big cutting depth.
  • Good clamping power. The clamping power of MLD32 type is around 1000 N-m.
  • Run-out: Within 0.001~0.005mm.
  • Concentricity: 0.02mm.
  • The pre-balance can reach G6.3 8,000RPM, with an inspection report. The balancing grade and revolution can be done according to customer's request but the additional charge is needed.

    • When using MLD sealed cap, the coolant fluid discharges from the cutting tool.It's good for heat dissipation and metal chips removal.

  • The design of coolant grooves improves the cooling and metal chips removal capability.



MODEL NO.TYPELl1d1d2WEIGHT (KGS)
SYIC - 35310G HSK50A x MLD12 - 90 115 90 12 42 1.52
SYIC - 35311G HSK50A x MLD16 - 100 125 100 16 48 1.59
SYIC - 35312G HSK50A x MLD20 - 120 140 120 20 56.5 1.62
SYIC - 35314G HSK50A x MLD25 - 105 130 105 25 60 1.6
SYIC - 35316G HSK50A x MLD32 - 130 150 130 32 71 1.8
SYIC - 35318G HSK63A x MLD12 - 90 122 90 12 42 1.62
SYIC - 35320G HSK63A x MLD16 - 100 132 100 16 48 1.62
SYIC - 35322G HSK63A x MLD20 - 120 152 120 20 56.5 1.68
SYIC - 35330G HSK63A x MLD25 - 105 137 105 25 60 1.82
SYIC - 35332G HSK63A x MLD32 - 120 152 120 32 71 1.76
SYIC - 35348G HSK100A x MLD12 - 115 165 115 12 42 3.1
SYIC - 35350G HSK100A x MLD16 - 120 170 120 16 48 3.1
SYIC - 35352G HSK100A x MLD20 - 120 170 120 20 56.5 3.4
SYIC - 35354G HSK100A x MLD25 - 115 165 115 25 60 3.3
SYIC - 35356G HSK100A x MLD32 - 120 170 120 32 71 3.4
