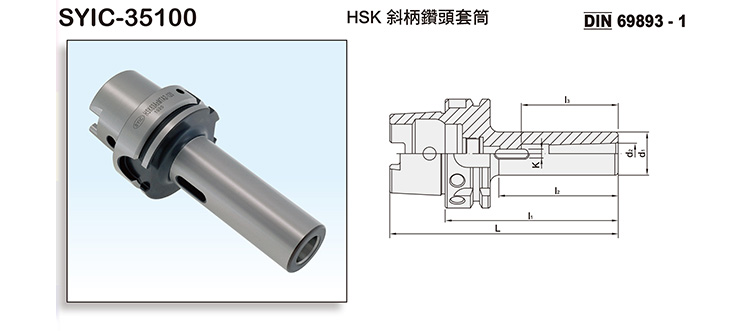

Product Name : HSK MORSE TAPER ADAPTER FOR TYPE A
Product Introduction
  • Roundness: 0.005mm.
  • MTA=TANG TYPE=DIN 228-Bon can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE MTA - l1Ll2l3d1d2KWEIGHT (KGS)
SYIC - 35102 HSK50A x MTA1 - 100 125 69 56 25 12.065 5.2 1.5
SYIC - 35104 HSK50A x MTA2 - 120 145 89 67 32 17.78 6.3 1.8
SYIC - 35106 HSK50A x MTA3 - 140 165 113 84 40 23.825 7.9 1.9
SYIC - 35112 HSK63A x MTA1 - 100 132 69 56 25 12.065 5.2 1.9
SYIC - 35114 HSK63A x MTA2 - 120 152 89 67 32 17.78 6.3 2
SYIC - 35116 HSK63A x MTA3 - 140 172 109 84 40 23.825 7.9 2.2
SYIC - 35118 HSK63A x MTA4 - 160 192 132 107 48 31.267 11.9 2.5
SYIC - 35122 HSK100A x MTA1 - 110 160 71 56 25 12.065 5.2 3.4
SYIC - 35124 HSK100A x MTA2 - 120 170 81 67 32 17.78 6.3 3.8
SYIC - 35126 HSK100A x MTA3 - 150 200 111 84 40 23.825 7.9 4
SYIC - 35128 HSK100A x MTA4 - 170 220 131 107 48 31.267 11.9 4.6
SYIC - 35130 HSK100A x MTA5 - 200 250 166 135 63 44.399 15.9 5.2
