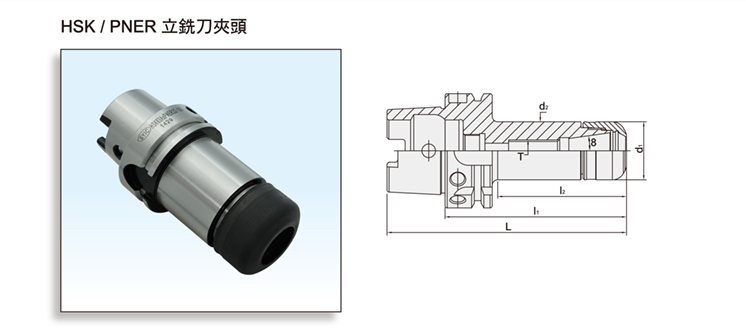

Product Name : HSK/PNER COLLET CHUCK
Product Introduction
MODEL NO.TYPE l1Ll2d1d3SIZE RANGETWEIGHT (KGS)
SYIC - 35710 HSK32A x PNER16 - 50 66 29 30 26 3.0 ~ 10 - 0.14
SYIC - 35711 HSK32A x PNER20 - 60 76 39 32 - 3.0 ~ 13 - 0.24
SYIC - 35720 HSK40A x PNER16 - 60 80 37 30 26 3.0 ~ 10 - 0.36
SYIC - 35722 HSK40A x PNER20 - 60 80 38 32 32 3.0 ~ 13 - 0.37
SYIC - 35724 HSK40A x PNER25 - 60 80 38 40 - 3.0 ~ 16 - 0.47
SYIC - 35726 HSK40A x PNER32 - 70 90 35 50 40.5 3.0 ~ 20 - 0.57
SYIC - 35730 HSK50A x PNER16 - 60 85 31 30 26 3.0 ~ 10 - 0.54
SYIC - 35732 HSK50A x PNER20 - 60 85 31 32 32 3.0 ~ 13 - 0.55
SYIC - 35734 HSK50A x PNER25 - 60 85 32 40 32.5 3.0 ~ 16 - 0.65
SYIC - 35736 HSK50A x PNER32 - 70 95 42 50 - 3.0 ~ 20 - 0.75
SYIC - 35738 HSK50A x PNER40 - 80 105 38 63 - 6.0 ~ 26 - 0.85
SYIC - 35742 HSK63A x PNER16 - 60 92 31 30 26 3.0 ~ 10 - 1
SYIC - 35742-100 HSK63A x PNER16 - 100 132 64 30 26 3.0 ~ 10 M10 x 1.5P 1.1
SYIC - 35742-130 HSK63A x PNER16 - 130 162 94 30 26 3.0 ~ 10 M10 x 1.5P 1.2
SYIC - 35742-160 HSK63A x PNER16 - 160 192 124 30 26 3.0 ~ 10 M10 x 1.5P 1.3
SYIC - 35744 HSK63A x PNER20 - 60 92 31 32 32 3.0 ~ 13 - 1.6
SYIC - 35744-100 HSK63A x PNER20 - 100 132 71 32 32 3.0 ~ 13 M12 x 1.75P 1.7
SYIC - 35744-130 HSK63A x PNER20 - 130 162 99 32 32 3.0 ~ 13 M12 x 1.75P 1.8
SYIC - 35744-160 HSK63A x PNER20 - 160 192 129 32 32 3.0 ~ 13 M12 x 1.75P 1.9
SYIC - 35746 HSK63A x PNER25 - 100 132 71 40 40 3.0 ~ 16 M16 x 2.0P 1.8
SYIC - 35746-130 HSK63A x PNER25 - 130 162 101 40 40 3.0 ~ 16 M16 x 2.0P 1.9
SYIC - 35746-160 HSK63A x PNER25 - 160 192 131 40 40 3.0 ~ 16 M16 x 2.0P 2
SYIC - 35748 HSK63A x PNER32 - 100 132 71 50 50 3.0 ~ 20 - 2.55
SYIC - 35748-130 HSK63A x PNER32 - 130 162 101 50 50 3.0 ~ 20 M20 x 2.0P 2.65
SYIC - 35748-160 HSK63A x PNER32 - 160 192 131 50 50 3.0 ~ 20 M20 x 2.0P 2.75
SYIC - 35750 HSK63A x PNER40 - 100 132 71 63 - 6.0 ~ 26 M20 x 2.0P 2.65
SYIC - 35750-130 HSK63A x PNER40 - 130 162 101 63 - 6.0 ~ 26 M20 x 2.0P 2.75
SYIC - 35750-160 HSK63A x PNER40 - 160 192 131 63 - 6.0 ~ 26 M20 x 2.0P 2.85
SYIC - 35760 HSK80A x PNER32 - 100 140 69 50 50 3.0 ~ 20 - 3.1
SYIC - 35762 HSK80A x PNER40 - 120 160 91 63 63 6.0 ~ 26 M20 x 2.0P 3.12
SYIC - 35766 HSK100A x PNER16 - 100 150 61 30 26 3.0 ~ 10 M10 x 1.5P 2.9
SYIC - 35768 HSK100A x PNER20 - 100 150 61 32 32 3.0 ~ 13 M12 x 1.75P 3
SYIC - 35770 HSK100A x PNER25 - 100 150 61 40 40 3.0 ~ 16 M16 x 2.0P 3.1
SYIC - 35772 HSK100A x PNER32 - 100 150 61 50 50 3.0 ~ 20 - 3.15
SYIC - 35774 HSK100A x PNER40 - 100 150 61 63 63 6.0 ~ 26 - 3.31
