Product Name : HSK/SBL SLIM-FIT COLLET CHUCK FOR TYPE A
Product Introduction
  • Every tool holder reaches the revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



SCREW TIGHTENING TORQUE:

TYPETTORQUE
N.m1bf-ft
SBL6 M6 x 1.0P 12 9
SBL12 M10 x 1.5P 59 43
SBL20 M12 x 1.75P 100 74

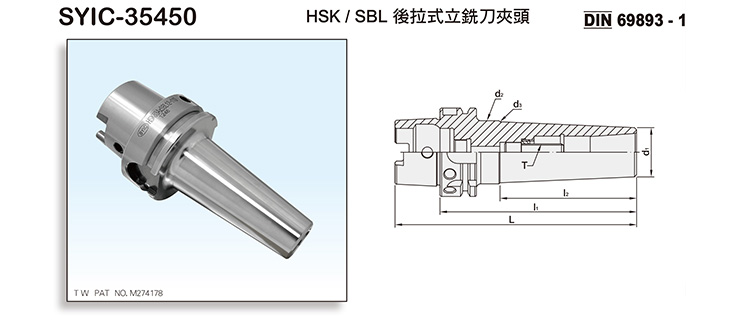

MODEL NO.TYPE - l1Ll2d1d2d3TSIZE RANGEWEIGHT (KGS)
SYIC - 35452 HSK50A x SBL6 - 80 105 44 14 18 - M6 x 1.0P 3.0 ~ 6 1.4
SYIC - 35454 HSK50A x SBL6 - 120 145 84 14 22 - M6 x 1.0P 3.0 ~ 6 1.5
SYIC - 35456 HSK50A x SBL12 - 110 135 65 26 42 36 M10 x 1.5P 3.0 ~ 12 1.5
SYIC - 35458 HSK50A x SBL12 - 130 155 86 26 42 39 M10 x 1.5P 3.0 ~ 12 1.85
SYIC - 35460 HSK50A x SBL20 - 120 145 93 35 42 - M12 x 1.75P 3.0 ~ 20 1.8
SYIC - 35462 HSK50A x SBL20 - 150 175 123 35 42 - M12 x 1.75P 3.0 ~ 20 2
SYIC - 35470 HSK63A x SBL6 - 80 112 39 14 18 - M6 x 1.0P 3.0 ~ 6 1.7
SYIC - 35472 HSK63A x SBL6 - 120 152 79 14 22 - M6 x 1.0P 3.0 ~ 6 1.9
SYIC - 35476 HSK63A x SBL12 - 110 142 79 26 37 - M10 x 1.5P 3.0 ~ 12 1.8
SYIC - 35478 HSK63A x SBL12 - 150 182 119 26 42 - M10 x 1.5P 3.0 ~ 12 2
SYIC - 35480 HSK63A x SBL20 - 120 152 89 35 42   M12 x 1.75P 3.0 ~ 20 2
SYIC - 35482 HSK63A x SBL20 - 140 172 97 35 45 43 M12 x 1.75P 3.0 ~ 20 2.45
SYIC - 35492 HSK100A x SBL6 - 120 170 76 14 22 - M6 x 1.0P 3.0 ~ 6 2.15
SYIC - 35494 HSK100A x SBL12 - 120 170 81 26 37 - M10 x 1.5P 3.0 ~ 12 2.4
SYIC - 35496 HSK100A x SBL20 - 135 185 88 35 45 42 M12 x 1.75P 3.0 ~ 20 2.74
SYIC - 35498 HSK100A x SBL25 - 150 200 111 40 49 - M16 x 2.0P 3.0 ~ 25 2.8
