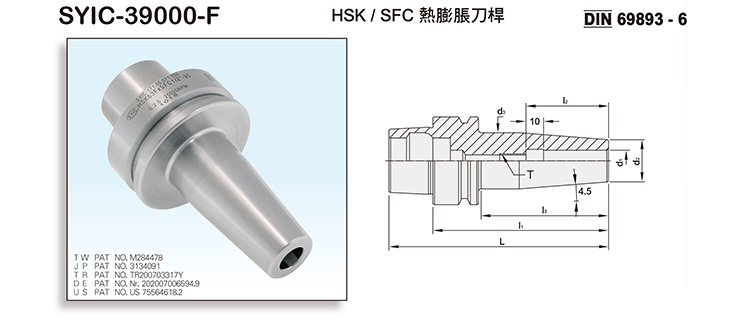

Product Name : HSK/SFC Shrink Fit Chuck For Type F
Product Introduction
  • High rigidity.
  • T.I.R.: within 5 μ.
  • Slim design.
  • Easy operation.
  • Every tool holder reaches the standard of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • For tool shank with h6 tolerance, such as Form HA to DIN6535 and Form A to DIN 1835-1, except that the internal hole of Shrink Fit Chuck is less than 6mm.

INCHES

MODEL NO.TYPE d1 - l1Ll2l3d2d3TTORQUE N.m minWEIGHT (KGS)
SYIC - 39016 - F HSK50F x SFC3/16" - 3.54" 4.33 0.79 2.34 0.43 0.79 - 18 0.48
SYIC - 39018 - F HSK50F x SFC1/4" - 3.54" 4.33 1.42 2.04 0.71 1.03 M5 x 0.8P 18 0.59
SYIC - 39020 - F HSK50F x SFC5/16" - 3.54" 4.33 1.42 2.32 0.79 1.06 M6 x 1.0P 35 0.61
SYIC - 39022 - F HSK50F x SFC3/8" - 3.54" 4.33 1.53 2.32 0.94 1.26 M8 x 1.25P 65 0.69
SYIC - 39024 - F HSK50F x SFC1/2" - 3.54" 4.33 1.85 2.32 1.1 1.34 M10 x 1.5P 110 0.75
SYIC - 39025 - F HSK50F x SFC5/8" - 3.54" 4.33 1.97 2.32 1.06 1.34 M12 x 1.75P 200 0.7
SYIC - 39026 - F HSK50F x SFC3/4" - 3.94" 4.73 1.97 2.87 1.26 1.65 M16 x 2.0P 320 0.9
SYIC - 39030 - F HSK63F x SFC3/16" - 3.94" 4.92 0.79 2.73 0.43 0.85 - 18 0.76
SYIC - 39032 - F HSK63F x SFC1/4" - 3.94" 4.92 1.42 2.71 0.71 1.06 M5 x 0.8P 18 0.89
SYIC - 39034 - F HSK63F x SFC5/16" - 3.94" 4.92 1.42 2.71 0.79 1.06 M6 x 1.0P 35 0.91
SYIC - 39036 - F HSK63F x SFC3/8" - 3.94" 4.92 1.65 2.83 0.94 1.26 M8 x 1.25P 65 1
SYIC - 39038 - F HSK63F x SFC1/2" - 3.94" 4.92 1.85 2.79 1.1 1.38 M10 x 1.5P 110 1.68
SYIC - 39039 - F HSK63F x SFC5/8" - 3.94" 4.92 1.97 2.79 1.06 1.34 M12 x 1.75P 200 1.02
SYIC - 39040 - F HSK63F x SFC3/4" - 3.94" 4.92 2.09 2.79 1.26 1.65 M16 x 2.0P 320 1.15
SYIC - 39042 - F HSK63F x SFC1" - 3.94" 4.92 2.28 2.72 1.42 1.65 M20 x 2.0P 500 1.12

INCHES

MODEL NO.TYPE d1 - l1Ll2l3d2d3TTORQUE N.m minWEIGHT (KGS)
SYIC - 39016 - 5.31 - F HSK50F x SFC3/16" - 5.31" 6.1 0.79 4.09 0.43 0.71 - 18 0.54
SYIC - 39018 - 5.31 - F HSK50F x SFC1/4" - 5.31" 6.1 1.42 4.09 0.49 0.79 M5 x 0.8P 18 0.58
SYIC - 39018 - 5.31 - F HSK50F x SFC5/16" - 5.31" 6.1 1.42 4.09 0.55 0.94 M6 x 1.0P 35 0.63
SYIC - 39022 - 5.31 - F HSK50F x SFC3/8" - 5.31" 6.1 1.53 4.09 0.61 1.02 M8 x 1.25P 65 0.66
SYIC - 39024 - 5.31 - F HSK50F x SFC1/2" - 5.31" 6.1 1.85 4.09 0.74 1.1 M10x 1.5P 110 0.73
SYIC - 39025 - 5.31 - F HSK50F x SFC5/8" - 5.31" 6.1 1.97 3.86 0.86 1.34 M12 x 1.75P 200 0.81
SYIC - 39026 - 5.31 - F HSK50F x SFC3/4" - 5.31" 6.1 1.97 4.09 0.99 1.38 M16 x 2.0P 320 0.89
SYIC - 39030 - 5.31 - F HSK63F x SFC3/16" - 5.31" 6.3 0.79 4.09 0.43 0.71 - 18 0.80
SYIC - 39032 - 5.31 - F HSK63F x SFC1/4" - 5.31" 6.3 1.42 4.09 0.49 0.79 M5 x 0.8P 18 0.83
SYIC - 39034 - 5.31 - F HSK63F x SFC5/16" - 5.31" 6.3 1.42 4.09 0.55 0.94 M6 x 1.0P 35 0.88
SYIC - 39036 - 5.31 - F HSK63F x SFC3/8" - 5.31" 6.3 1.53 4.09 0.61 1.02 M8 x 1.25P 65 0.91
SYIC - 39038 - 5.31 - F HSK63F x SFC1/2" - 5.31" 6.3 1.85 4.09 0.74 1.1 M10 x 1.5P 110 0.98
SYIC - 39039 - 5.31 - F HSK63F x SFC5/8" - 5.31" 6.3 1.97 3.86 0.86 1.34 M12 x 1.75P 200 1.07
SYIC - 39040 - 5.31 - F HSK63F x SFC3/4" - 5.31" 6.3 1.97 4.09 0.99 1.38 M16 x 2.0P 320 1.14
SYIC - 39042 - 5.31 - F HSK63F x SFC1" - 5.31" 6.3 2.04 4.09 1.24 1.57 M20 x 2.0P 500 1.31
