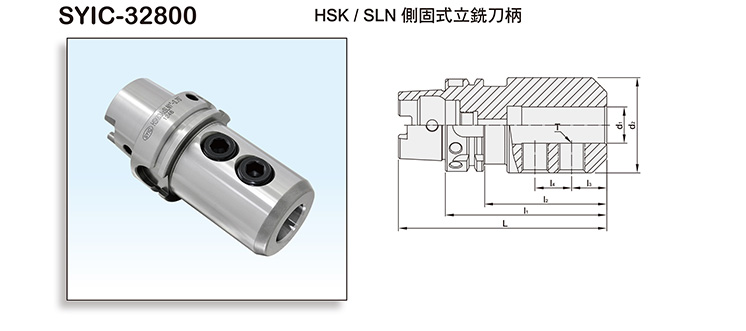

Product Name : HSK SIDE LOCK END MILL HOLDER FOR TYPE A
Product Introduction
  • Internal hole tolerance : H5(DIN-1835-B standard).
  • The tolerance of tool shank diameter is within h6.
  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - l1Ll2l3l4d2TWEIGHT (KGS)
SYIC - 32802 HSK50A x SLN6 - 65 90 34 18 - 25 M6 x 1.0P 0.7
SYIC - 32804 HSK50A x SLN8 - 65 90 36 18 - 28 M8 x 1.25P 0.8
SYIC - 32806 HSK50A x SLN10 - 65 90 36.5 20 - 35 M10 x 1.5P 0.8
SYIC - 32808 HSK50A x SLN12 - 80 105 53.5 22.5 - 42 M12 x 1.75P 1.2
SYIC - 32810 HSK50A x SLN14 - 80 105 53.5 22.5 - 44 M12 x 1.75P 1.3
SYIC - 32812 HSK50A x SLN16 - 80 105 53.5 24 - 48 M14 x 2.0P 1.3
SYIC - 32814 HSK50A x SLN18 - 80 105 53.5 24 - 50 M14 x 2.0P 1.4
SYIC - 32816 HSK50A x SLN20 - 80 105 53 25 - 52 M16 x 2.0P 1.5
SYIC - 32822 HSK63A x SLN6 - 65 97 36 18 - 25 M6 x 1.0P 0.9
SYIC - 32824 HSK63A x SLN8 - 65 97 36 18 - 28 M8 x 1.25P 1
SYIC - 32826 HSK63A x SLN10 - 65 97 36 20 - 35 M10 x 1.5P 1
SYIC - 32828 HSK63A x SLN12 - 80 112 49 22.5 - 42 M12 x 1.75P 1.7
SYIC - 32830 HSK63A x SLN14 - 80 112 51 22.5 - 44 M12 x 1.75P 1.7
SYIC - 32832 HSK63A x SLN16 - 80 112 51.5 24 - 48 M14 x 2.0P 1.7
SYIC - 32834 HSK63A x SLN18 - 80 112 52.5 24 - 50 M14 x 2.0P 1.8
SYIC - 32836 HSK63A x SLN20 - 80 112 53.5 25 - 52 M16 x 2.0P 1.8
SYIC - 32838 HSK63A x SLN25 - 110 142 83.2 24 25 65 M18 x 2.0P 2.5
SYIC - 32840 HSK63A x SLN32 - 110 142 83.2 24 28 72 M20 x 2.0P 2.7
SYIC - 32862 HSK100A x SLN6 - 80 130 41 18 - 25 M6 x 1.0P 3
SYIC - 32864 HSK100A x SLN8 - 80 130 41 18 - 28 M8 x 1.25P 3.2
SYIC - 32866 HSK100A x SLN10 - 80 130 46 20 - 35 M10 x 1.5P 3.4
SYIC - 32868 HSK100A x SLN12 - 80 130 46 22.5 - 42 M12 x 1.75P 3.4
SYIC - 32870 HSK100A x SLN14 - 80 130 46 22.5 - 44 M12 x 1.75P 3.5
SYIC - 32872 HSK100A x SLN16 - 100 150 66 24 - 48 M14 x 2.0P 3.8
SYIC - 32874 HSK100A x SLN18 - 100 150 66 24 - 50 M16 x 2.0P 3.8
SYIC - 32876 HSK100A x SLN20 - 100 150 61 25 - 52 M16 x 2.0P 3.9
SYIC - 32878 HSK100A x SLN25 - 100 150 66 24 25 65 M18 x 2.0P 4
SYIC - 32880 HSK100A x SLN32 - 100 150 66 24 28 72 M20 x 2.0P 4.1
SYIC - 32882 HSK100A x SLN40 - 120 170 89 30 32 90 M20 x 2.0P 4.4
