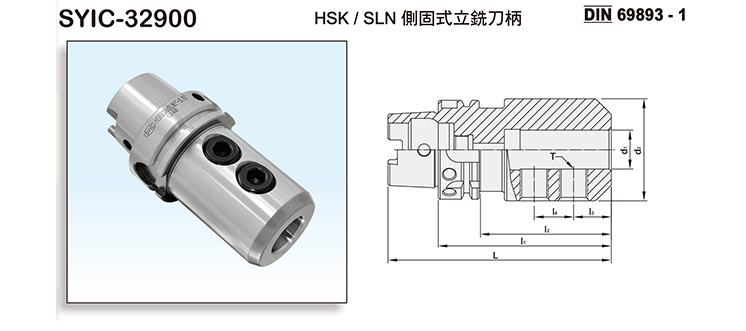

Product Name : HSK SIDE LOCK END MILL HOLDER FOR TYPE A
Product Introduction
  • Internal hole tolerance : H5(DIN-1835-B standard).
  • The tolerance of tool shank diameter is within h6.
  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - l1Ll2l3l4d2TWEIGHT (KGS)
SYIC - 32922 HSK40A x SLN1/4" - 2.5" 3.287 1.516 0.63 - 0.78 1/4 - 28 0.31
SYIC - 32926 HSK40A x SLN3/8" - 2.5" 3.287 1.594 0.75 - 1 3/8 - 24 0.42
SYIC - 32928 HSK40A x SLN1/2" - 2.75" 3.537 1.884 0.875 - 1.38 7/16 - 20 0.57
SYIC - 32930 HSK40A x SLN5/8" - 3" 3.787 2.181 0.937 - 1.63 1/2 - 20 0.69
SYIC - 32948 HSK63A x SLN1/4" - 3" 4.26 1.78 0.63 - 0.78 1/4 - 28 0.76
SYIC - 32952 HSK63A x SLN3/8" - 3" 4.26 1.78 0.75 - 1 3/8 - 24 0.88
SYIC - 32954 HSK63A x SLN1/2" - 3" 4.26 1.78 0.875 - 1.38 7/16 - 20 1.13
SYIC - 32956 HSK63A x SLN5/8" - 3.75" 5 2.53 0.937 - 1.63 1/2 - 20 1.26
SYIC - 32958 HSK63A x SLN3/4" - 3.75" 5 2.648 1 - 1.75 5/8 - 18 1.33
SYIC - 32962 HSK63A x SLN1" - 3.75" 5 2.687 1.125   2 3/4 - 16 2.3
SYIC - 32964 HSK63A x SLN1-1/4" - 4.25" 5.51 3.187 1.125 1 2.5 3/4 - 16 2.52
SYIC - 32978 HSK100A x SLN1/4" - 3" 4.97 1.465 0.63 - 0.78 1/4 - 28 2.16
SYIC - 32982 HSK100A x SLN3/8" - 3" 4.97 1.661 0.75 - 1 3/8 - 24 2.31
SYIC - 32984 HSK100A x SLN1/2" - 3.25" 5.219 1.911 0.875 - 1.38 7/16 - 20 2.45
SYIC - 32986 HSK100A x SLN5/8" - 3.75" 5.719 2.411 0.937 - 1.63 1/2 - 20 2.84
SYIC - 32988 HSK100A x SLN3/4" - 3.75" 5.719 2.411 1 - 1.75 5/8 - 18 2.95
SYIC - 32992 HSK100A x SLN1" - 4.25" 6.219 2.911 1.125 1 2 3/4 - 16 3.46
SYIC - 32994 HSK100A x SLN1-1/4" - 4.25" 6.219 2.911 1.125 1 2.5 3/4 - 16 3.73
SYIC - 32996 HSK100A x SLN1-1/2" - 4.5" 6.469 3.161 1.125 1 2.75 3/4 - 16 5.51
SYIC - 32998 HSK100A x SLN2" - 5.5" 7.469 4.319 1.41 1.5 3.75 1 - 14 6.37
