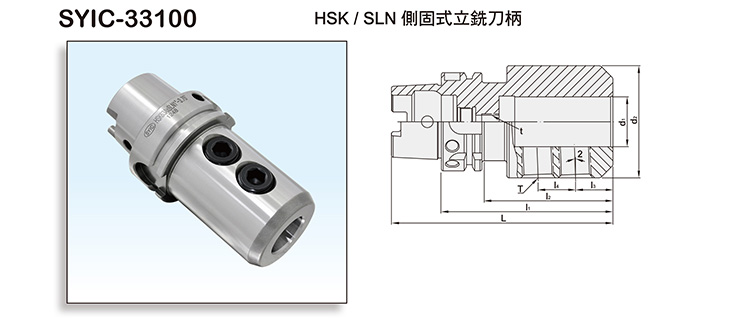

Product Name : HSK SIDE LOCK END MILL HOLDER FOR TYPE A
Product Introduction
  • Internal hole tolerance : H5(DIN-1835-B standard).
  • The tolerance of tool shank diameter is within h6.
  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE d1 - l1Ll2l3l4d2tTWEIGHT (KGS)
SYIC - 33102 HSK50A x SLNB6 - 80 105 49 18 - 25 M5 M6 x 1.0P 0.8
SYIC - 33104 HSK50A x SLNB8 - 80 105 49 18 - 28 M6 M8 x 1.25P 0.9
SYIC - 33106 HSK50A x SLNB10 - 80 105 51 20 - 35 M8 M10 x 1.5P 0.9
SYIC - 33108 HSK50A x SLNB12 - 90 115 64 22.5 - 42 M10 M12 x 1.75P 1.3
SYIC - 33110 HSK50A x SLNB14 - 90 115 63.2 22.5 - 44 M10 M12 x 1.75P 1.4
SYIC - 33112 HSK50A x SLNB16 - 90 115 63.2 24 - 48 M12 M14 x 2.0P 1.4
SYIC - 33114 HSK50A x SLNB18 - 90 115 63.2 24 - 50 M12 M14 x 2.0P 1.6
SYIC - 33116 HSK50A x SLNB20 - 100 125 73 25 - 52 M16 M16 x 2.0P 1.7
SYIC - 33132 HSK63A x SLNB6 - 80 112 49 18 - 25 M5 M6 x 1.0P 1
SYIC - 33134 HSK63A x SLNB8 - 80 112 49 18 - 28 M6 M8 x 1.25P 1.1
SYIC - 33136 HSK63A x SLNB10 - 80 112 51 20 - 35 M8 M10 x 1.5P 1.1
SYIC - 33138 HSK63A x SLNB12 - 90 122 64 22.5 - 42 M10 M12 x 1.75P 2
SYIC - 33140 HSK63A x SLNB14 - 90 122 61 22.5 - 44 M10 M12 x 1.75P 2
SYIC - 33142 HSK63A x SLNB16 - 100 132 72 24 - 48 M12 M14 x 2.0P 2
SYIC - 33144 HSK63A x SLNB18 - 100 132 72.5 24 - 50 M12 M14 x 2.0P 2.1
SYIC - 33146 HSK63A x SLNB20 - 100 132 72.5 25 - 52 M16 M16 x 2.0P 2.1
SYIC - 33148 HSK63A x SLNB25 - 110 142 83.2 24 25 65 M20 M18 x 2.0P 2.6
SYIC - 33150 HSK63A x SLNB32 - 110 142 82.5 24 24 72 - M20 x 2.0P 2.8
SYIC - 33162 HSK100A x SLNB6 - 90 140 51 18 - 25 M5 M6 x 1.0P 3.4
SYIC - 33164 HSK100A x SLNB8 - 90 140 51 18 - 28 M6 M8 x 1.25P 3.5
SYIC - 33166 HSK100A x SLNB10 - 90 140 51 20 - 35 M8 M10 x 1.5P 3.8
SYIC - 33168 HSK100A x SLNB12 - 100 150 61 22.5 - 42 M10 M12 x 1.75P 3.8
SYIC - 33170 HSK100A x SLNB14 - 100 150 61 22.5 - 44 M10 M12 x 1.75P 4
SYIC - 33172 HSK100A x SLNB16 - 100 150 66 24 - 48 M12 M14 x 2.0P 4
SYIC - 33174 HSK100A x SLNB18 - 100 150 61 24 - 50 M12 M14 x 2.0P 4
SYIC - 33176 HSK100A x SLNB20 - 110 160 71 25 - 52 M16 M16 x 2.0P 4.2
SYIC - 33178 HSK100A x SLNB25 - 120 170 86 24 22 65 M20 M18 x 2.0P 4.4
SYIC - 33180 HSK100A x SLNB32 - 120 170 86 24 24 72 M20 M20 x 2.0P 4.5
SYIC - 33182 HSK100A x SLNB40 - 120 170 89 30 32 90 M20 M20 x 2.0P 5
