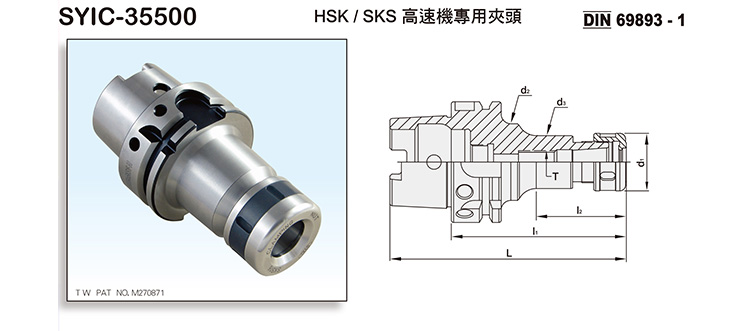

Product Name : HSK/SKS COLLET CHUCK FOR TYPE A
Product Introduction
  • Runout is within 5μ (4D length).
  • SKS Collet taper: 4° , increasing holding power, concentricity and rigidity.
  • Every tool holder reaches revolution of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ll2d1d2d3SIZE RANGETWEIGHT (KGS)
SYIC - 35506 HSK50A x SKS6 - 90 115 44 18 32 18 3.0 ~ 6.0 M8 x 1.25P 0.8
SYIC - 35508 HSK50A x SKS6 - 120 145 74 18 32 18 3.0 ~ 6.0 M8 x 1.25P 1
SYIC - 35512 HSK50A x SKS10 - 90 115 45 30 40 27.6 2.0 ~ 10 M12 x 1.75P 0.8
SYIC - 35514 HSK50A x SKS10 - 120 145 75 30 40 27.6 2.0 ~ 10 M12 x 1.75P 1
SYIC - 35515 HSK50A x SKS13 - 70 95 45 35 33 - 3.0 ~ 13 - 0.9
SYIC - 35515 - 105 HSK50A x SKS13 - 105 130 76 35 33 - 3.0 ~ 13 M12 x 1.75P 1.2
SYIC - 35516 HSK50A x SKS16 - 90 115 63 40 40 - 3.0 ~ 16 M18 x 1.5P 1
SYIC - 35517 HSK50A x SKS16 - 120 145 93 40 40 - 3.0 ~ 16 M18 x 1.5P 1.2
SYIC - 35518 HSK50A x SKS20 - 90 115 48 48.5 48.5 - 3.0 ~ 20 - 1
SYIC - 35518 - 120 HSK50A x SKS20 - 120 145 78 48.5 48.5 - 3.0 ~ 20 M22x 1.5P 1.2
SYIC - 35519 HSK50A x SKS25 - 90 115 63 55 42 - 3.0 ~ 25.4 - 1.3
SYIC - 35520 HSK50A x SKS25 - 120 145 93 55 42 - 3.0 ~ 25.4 M28 x 2.0P 1.4
