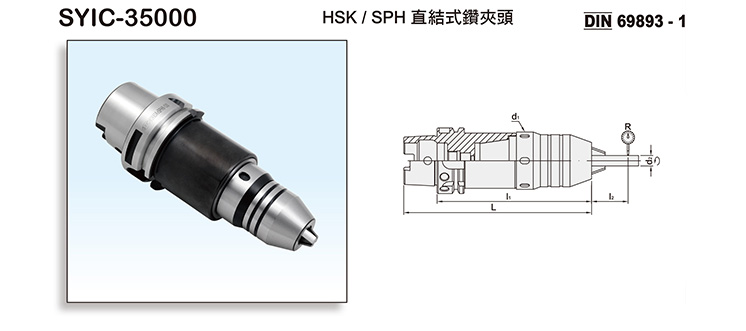

Product Name : HSK/SPH DRILL CHUCK ADAPTER FOR TYPE A
Product Introduction

This product adds multi safety design, able to provide for Machine Center, in full automatic operation control by computer, and unmanned management process, it can be processed safely and smoothly.

  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ll2d1d2RWEIGHT (KGS)
SYIC - 35004 HSK40A x SPH8 - 100 120 55 42 6 0.04 1.4
SYIC - 35008 HSK40A x SPH13 - 125 145.6 75 54 8 0.04 1.6
SYIC - 35020 HSK63A x SPH8 - 130 162 55 42 6 0.04 1.4
SYIC - 35024 HSK63A x SPH13 - 150 184.3 75 54 8 0.04 1.6
