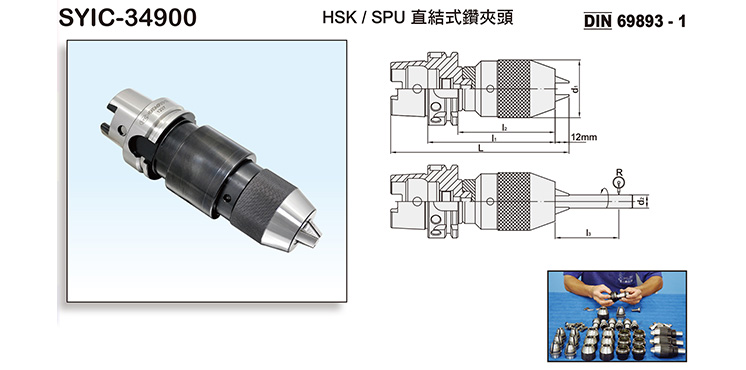

Product Name : HSK/SPU DRILL CHUCK ADAPTER FOR TYPE A
Product Introduction

This product adds multi safety design, able to provide for Machine Center, in full automatic operation control by computer, and unmanned management process, it can be processed safely and smoothly.

  • The pre-balance can reach G6.3 8,000 rpm, without an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ll2l3d1d2RWEIGHT (KGS)
SYIC - 34903 HSK50A x SPU13 - 150 187 124 55 50 5 0.04 1.4
SYIC - 34905 HSK63A x SPU13 - 150 194 124 55 50 10 0.04 2.1
SYIC - 34907 HSK100A x SPU13 - 155 217 126 75 50 13 0.04 3.1
