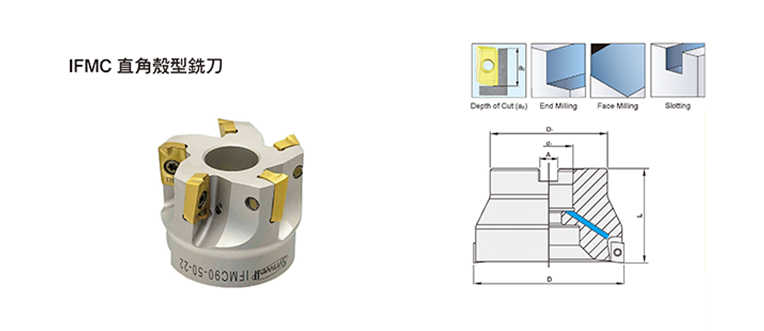

Product Name : IFMC Square Shoulder Milling Cutter
Product Introduction
MODEL NO.TYPEDD1d1LAap max.TEETHINSERT
154.241S.22.050 IFMC90-50-22-AP10 50 40 22 40 10.4 10 7 AP..1003
154.241S.22.063 IFMC90-63-22-AP10 63 48 22 40 10.4 10 9 AP..1003
154.241S.27.080 IFMC90-80-27-AP10 80 62 27 50 12.4 10 11 AP..1003
154.241S.32.100 IFMC90-100-32-AP10 100 78 32 50 14.4 10 13 AP..1003
154.241S.40.125 IFMC90-125-40-AP10 125 89 40 63 16.4 10 16 AP..1003
154.241S.68.050 IFMC90-50-25.4-AP10 50 45 25.4 40 9.5 10 7 AP..1003
154.241S.68.063 IFMC90-63-25.4-AP10 63 50 25.4 40 9.5 10 9 AP..1003
154.241S.72.080 IFMC90-80-31.75-AP10 80 62 31.75 50 12.7 10 11 AP..1003
154.241S.72.100 IFMC90-100-31.75-AP10 100 78 31.75 50 12.7 10 13 AP..1003
154.241S.77.125 IFMC90-125-38.1-AP10 125 80 38.1 63 15.9 10 16 AP..1003



MODEL NO.TYPEDD1d1LAap max.TEETHINSERT
154.242.22.050 IFMC90-50-22 50 45 22 40 10.4 16 5 AP..1604
154.242.22.063 IFMC90-63-22 63 48 22 40 10.4 16 5 AP..1604
154.242.27.080 IFMC90-80-27 80 62 27 50 12.4 16 6 AP..1604
154.242.32.100 IFMC90-100-32 100 78 32 50 14.4 16 7 AP..1604
154.242.40.125 IFMC90-125-40 125 89 40 63 16.4 16 8 AP..1604
154.242.68.050 IFMC90-50-25.4 50 48.5 25.4 40 9.5 16 5 AP..1604
154.242.68.063 IFMC90-63-25.4 63 50 25.4 40 9.5 16 5 AP..1604
154.242.72.080 IFMC90-80-31.75 80 62 31.75 50 12.7 16 6 AP..1604
154.242.72.100 IFMC90-100-31.75 100 78 31.75 50 12.7 16 7 AP..1604
154.242.77.125 IFMC90-125-38.1 125 80 38.1 63 15.9 16 8 AP..1604

ACCESSORIES:

INSERTINSERT SCREWWRENCH
AP..1003 M2.5-6.45-3.7-60 T8
AP..1604 M4-10-5.7-60 T15
  • Inserts are optional accessories. Needs to be purchased additionally.
