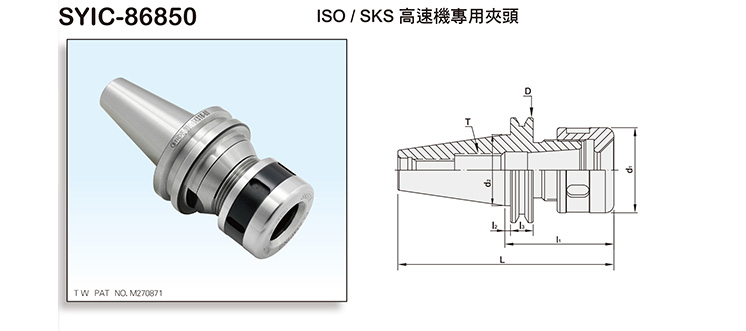

Product Name : ISO /SKS Collet Chuck For W/Out Slots
Product Introduction
  • Whole Shank body with grinding.
  • Standard revolution: G2.5 25000rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
MODEL NO.TYPE - l1Ll2l3Dd1d2TSIZE RANGEWEIGHT (KGS)
SYIC - 86852 ISO20 x SKS6 - 45 76.3 3.9 8 33 18 21.642 M8 x 1.25P 3.0 ~ 6.0 0.55
SYIC - 86854 ISO20 x SKS6 - 60 91.3 3.9 8 33 18 21.642 M8 x 1.25P 3.0 ~ 6.0 0.6
SYIC - 86856 ISO20 x SKS10 - 45 76.3 3.9 8 33 30 21.642 M12 x 1.75P 3.0 ~ 10 0.6
SYIC - 86858 ISO20 x SKS10 - 60 91.3 3.9 8 33 30 21.642 M12 x 1.75P 3.0 ~ 10 0.7
SYIC - 86862 ISO25 x SKS6 - 45 82.7 2 8 37 18 25 M8 x 1.25P 3.0 ~ 6.0 0.6
SYIC - 86864 ISO25 x SKS6 - 60 97.7 2 8 37 18 25 M8 x 1.25P 3.0 ~ 6.0 0.65
SYIC - 86866 ISO25 x SKS10 - 40 77.7 2 8 37 30 25 M12 x 1.75P 3.0 ~ 10 0.7
SYIC - 86868 ISO25 x SKS10 - 60 97.7 2 8 37 30 25 M12 x 1.75P 3.0 ~ 10 0.75
SYIC - 86872 ISO30 x SKS6 - 45 92.8 3.2 15.9 50 18 31.75 M8 x 1.25P 3.0 ~ 6.0 0.65
SYIC - 86874 ISO30 x SKS6 - 60 107.8 3.2 15.9 50 18 31.75 M8 x 1.25P 3.0 ~ 6.0 0.7
SYIC - 86876 ISO30 x SKS10 - 45 92.8 3.2 15.9 50 30 31.75 M12 x 1.75P 3.0 ~ 10 0.8
SYIC - 86878 ISO30 x SKS10 - 60 107.8 3.2 15.9 50 30 31.75 M12 x 1.75P 3.0 ~ 10 0.85
SYIC - 86880 ISO30 x SKS16 - 60 107.8 3.2 15.9 50 40 31.75 M18 x 1.5P 3.0 ~ 16 0.72
