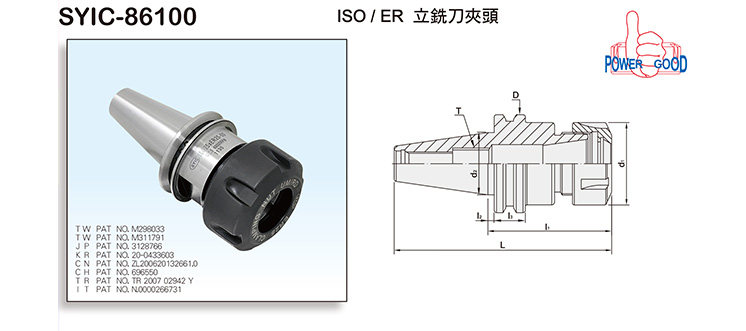

Product Name : ISO/ER Collet Chuck For W/Out Slots
Product Introduction
  • Whole shank body with grinding.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.



MODEL NO.TYPE - l1Ll2l3Dd1d2SIZE RANGETWEIGHT (KGS)
SYIC - 86102 ISO20 x ER11A - 52 83.3 2 8 33 19 21.642 1.0 ~ 7.0 M6 x 1.0P 0.55
SYIC - 86104 ISO20 x ER16A - 52 83.3 2 8 33 28 21.642 1.0 ~ 10 M10 x 1.5P 0.6
SYIC - 86106 ISO20 x ER20A - 52 83.3 2 8 33 34 21.642 1.0 ~ 13 M12 x 1.75P 0.65
SYIC - 86112 ISO25 x ER11A - 52 89.7 2.95 8 37 19 24.91 1.0 ~ 7.0 M6 x 1.0P 0.6
SYIC - 86114 ISO25 x ER16A - 52 89.7 2.95 8 37 28 24.91 1.0 ~ 10 M10 x 1.5P 0.65
SYIC - 86116 ISO25 x ER20A - 52 89.7 2.95 8 37 34 24.91 1.0 ~ 13 M12 x 1.75P 0.7
SYIC - 86122 ISO30 x ER11A - 80 127.8 3.2 15.9 50 19 31.75 1.0 ~ 7.0 M6 x 1.0P 0.7
SYIC - 86124 ISO30 x ER16A - 63 110.8 3.2 15.9 50 28 31.75 1.0 ~ 10 M10 x 1.5P 0.8
SYIC - 86126 ISO30 x ER20A - 63 110.8 3.2 15.9 50 34 31.75 1.0 ~ 13 M12 x 1.75P 0.85
SYIC - 86128 ISO30 x ER25 - 63 110.8 3.2 15.9 50 42 31.75 1.0 ~ 16 M16 x 2.0P 0.9
SYIC - 86130 ISO30 x ER32 - 63 110.8 3.2 15.9 50 50 31.75 2.0 ~ 20 M16 x 2.0P 0.9
SYIC - 86132 ISO30 x ER40 - 57 104.8 3.2 15.9 50 63 31.75 3.0 ~ 26 M16 x 2.0P 0.95
