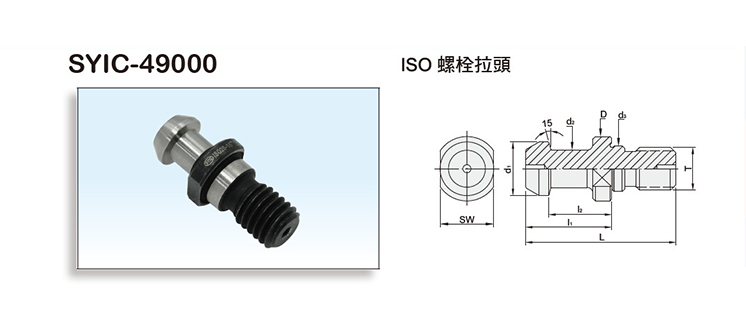

Product Name : ISO Pull Studs
Product Introduction
  • Please make sure the pull stud conforms to the machine type.
MODEL NO.TYPEDd1d2d3Ll1l2l4SWTWEIGHT (KGS)
SYIC - 49000 - ISO20 ISO20 - 15° 12 9 6 8.5 26 12 9 2.7 10 M8 0.01
SYIC - 42194 - ISO25 - 02 ISO25 - 45° 12 10 7 9 31 18 13.5 2.5 10 M8 0.02
SYIC - 49000 - ISO25 ISO25 - 15° 12 10 7 8.5 28 16 11.7 2.5 10 M8 0.02
SYIC - 49001 - 45 ISO30 17 12.8 9 13 45 24 19 4 14 M12 0.03
