Product Name : ISO/SBL Silm-Fit Collet Chuck For W/Out Slots
Product Introduction
  • SCREW TIGHTENING TORQUE:
TYPETTORQUE
N.m1bf-ft
SBL6 M6 x 1.0P 12 9
SBL12 M10 x 1.5P 59 43
SBL20 M12 x 1.75P 100 74
  • Slim designs avoid interference.
  • Chucking in the front part of Collet which hides inside.
  • Good design for high speed rotation with good stability because of non-clamping nut.
  • 4° taper angle is good for powerful chucking and can stripe easily.
  • Standard revolution: G2.5 25000rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.according to customer's request but the additional charge is needed.

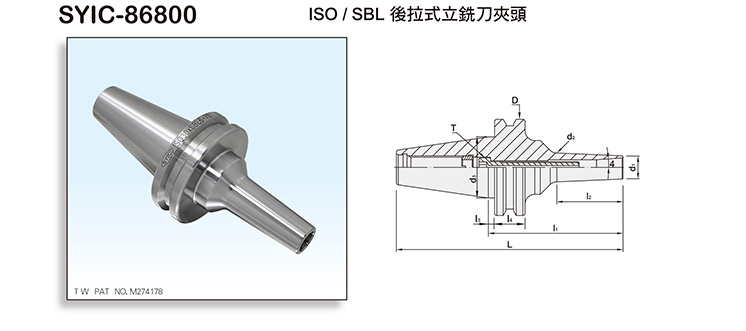

MODEL NO.TYPE - l1Ll2l3l4Dd1d2d3TSIZE RANGEWEIGHT (KGS)
SYIC - 86822 ISO30 x SBL6 - 70 117.8 39 3.2 15.9 50 14 18 31.75 M6 x 1.0P 3.0 ~ 6.0 0.7
SYIC - 86824 ISO30 x SBL12 - 70 117.8 46 3.2 15.9 50 26 30 31.75 M10 x 1.5P 3.0 ~ 12 0.8
SYIC - 86826 ISO30 x SBL20 - 80 127.8 58 3.2 15.9 50 35 37 31.75 M12 x 1.75P 3.0 ~ 20 0.85
