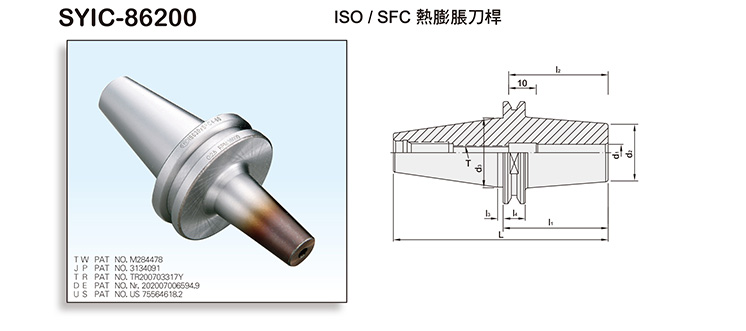

Product Name : ISO/SFC Shrink Fit Chuck
Product Introduction
  • High rigidity.
  • T.I.R.: within 5 μ.
  • Slim design.
  • Easy operation.
  • Every tool holder reaches the standard of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • For tool shank with h6 tolerance, such as Form HA to DIN6535 and Form A to DIN 1835-1, except that the internal hole of Shrink Fit Chuck is less than 6mm.



MODEL NO.TYPE d1 - l1Ll2l3l4d2d3TWEIGHT (KGS)
SYIC - 86200 ISO20 x SFC3 - 60 93.3 18 2 8 9 21.642 M6 x 1.0P 0.4
SYIC - 86202 ISO20 x SFC4 - 60 93.3 20 2 8 10 21.642 M6 x 1.0P 0.4
SYIC - 86204 ISO20 x SFC5 - 60 93.3 20 2 8 16 21.642 M6 x 1.0P 0.4
SYIC - 86206 ISO20 x SFC6 - 60 93.3 36 2 8 21 21.642 M5 x 0.8P 0.4
SYIC - 86210 ISO25 x SFC3 - 60 92.7 18 2.95 8 9 24.91 M6 x 1.0P 0.4
SYIC - 86212 ISO25 x SFC4 - 60 92.7 20 2.95 8 10 24.91 M6 x 1.0P 0.42
SYIC - 86214 ISO25 x SFC5 - 60 92.7 20 2.95 8 16 24.91 M6 x 1.0P 0.42
SYIC - 86216 ISO25 x SFC6 - 60 97.7 36 2.95 8 21 24.91 M5 x 0.8P 0.42
SYIC - 86218 ISO25 x SFC8 - 60 97.7 36 2.95 8 21 24.91 M6 x 1.0P 0.43
SYIC - 86220 ISO25 x SFC10 - 60 97.7 42 2.95 8 24 24.91 M8 x 1.25P 0.44
SYIC - 86222 ISO25 x SFC12 - 60 97.7 47 2.95 8 24 24.91 M10 x 1.5P 0.44
SYIC - 86228 ISO30 x SFC3 - 60 107.8 18 3.2 15.9 9 31.75 M6 x 1.0P 1
SYIC - 86230 ISO30 x SFC4 - 60 107.8 20 3.2 15.9 10 31.75 M6 x 1.0P 1
SYIC - 86232 ISO30 x SFC5 - 60 107.8 20 3.2 15.9 16 31.75 M6 x 1.0P 1.1
SYIC - 86234 ISO30 x SFC6 - 60 107.8 36 3.2 15.9 21 31.75 M5 x 0.8P 1.1
SYIC - 86236 ISO30 x SFC8 - 80 117.8 36 3.2 15.9 21 31.75 M6 x 1.0P 1.1
SYIC - 86238 ISO30 x SFC10 - 80 117.8 42 3.2 15.9 24 31.75 M8 x 1.25P 1.1
SYIC - 86240 ISO30 x SFC12 - 80 117.8 47 3.2 15.9 24 31.75 M10 x 1.5P 1.1
SYIC - 86242 ISO30 x SFC14 - 80 117.8 47 3.2 15.9 24 31.75 M10 x 1.5P 1.1
SYIC - 86244 ISO30 x SFC16 - 80 117.8 50 3.2 15.9 27 31.75 M12 x 1.75P 1.1
