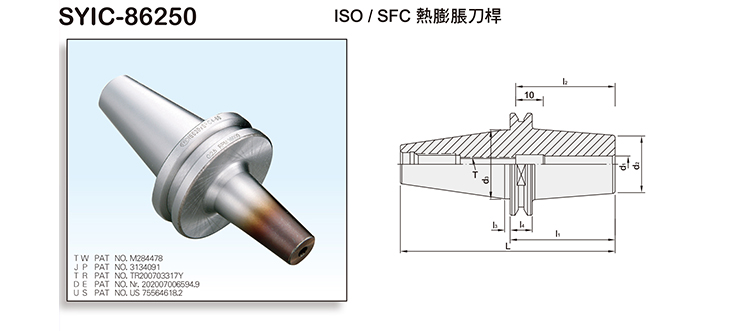

Product Name : ISO/SFC Shrink Fit Chuck
Product Introduction
  • High rigidity.
  • T.I.R.: within 5 μ.
  • Slim design.
  • Easy operation.
  • Every tool holder reaches the standard of G2.5 25,000 rpm, with an inspection report.
  • The balancing grade and revolution can be done according to customer's request but the additional charge is needed.
  • For tool shank with h6 tolerance, such as Form HA to DIN6535 and Form A to DIN 1835-1, except that the internal hole of Shrink Fit Chuck is less than 6mm.



INCHES

MODEL NO.TYPE d1 - l1Ll2l3l4d2d3TTORQUE N.m min
SYIC - 86252 ISO20 x SFC1/8" - 2.5" 3.81 0.71 0.079 0.315 0.36 0.852 - 0.40
SYIC - 86254 ISO20 x SFC3/16" - 2.5" 3.81 0.79 0.079 0.315 0.43 0.852 - 0.40
SYIC - 86254 ISO20 x SFC1/4" - 2.5" 3.81 1.42 0.079 0.315 0.71 0.852 M5 x 0.8P 0.40
SYIC - 86258 ISO20 x SFC5/16" - 2.5" 3.81 1.42 0.079 0.315 0.79 0.852 M6 x 1.0P 0.40
SYIC - 86266 ISO25 x SFC1/8" - 2.5" 3.98 0.71 0.116 0.315 0.36 0.981 - 0.42
SYIC - 86268 ISO25 x SFC3/16" - 2.5" 3.98 0.79 0.116 0.315 0.43 0.981 - 0.42
SYIC - 86270 ISO25 x SFC1/4" - 2.5" 3.99 1.42 0.116 0.315 0.71 0.981 M5 x 0.8P 0.42
SYIC - 86272 ISO25 x SFC5/16" - 2.5" 3.98 1.42 0.116 0.315 0.79 0.981 M6 x 1.0P 0.42
SYIC - 86274 ISO25 x SFC3/8" - 2.5" 3.98 1.65 0.116 0.315 0.94 0.981 M8 x 1.25P 0.43
SYIC - 86280 ISO30 x SFC1/8" - 2.5" 4.39 0.71 0.126 0.626 0.36 1.25 - 0.44
SYIC - 86282 ISO30 x SFC3/16" - 2.5" 4.39 0.79 0.126 0.626 0.43 1.25 - 0.44
SYIC - 86284 ISO30 x SFC1/4" - 2.5" 4.38 1.42 0.126 0.626 0.71 1.25 M5 x 0.8P 1.00
SYIC - 86286 ISO30 x SFC5/16" - 3.15" 4.64 1.42 0.126 0.626 0.79 1.25 M6 x 1.0P 1.00
SYIC - 86290 ISO30 x SFC3/8" - 3.15" 4.64 1.65 0.126 0.626 0.94 1.25 M8 x 1.25P 1.10
SYIC - 86292 ISO30 x SFC1/2" - 3.15" 4.64 1.85 0.126 0.626 1.1 1.25 M10 x 1.5P 1.10
SYIC - 86294 ISO30 x SFC5/8" - 3.15" 4.64 1.97 0.126 0.626 1.06 1.25 M12x 1.75P 1.10
