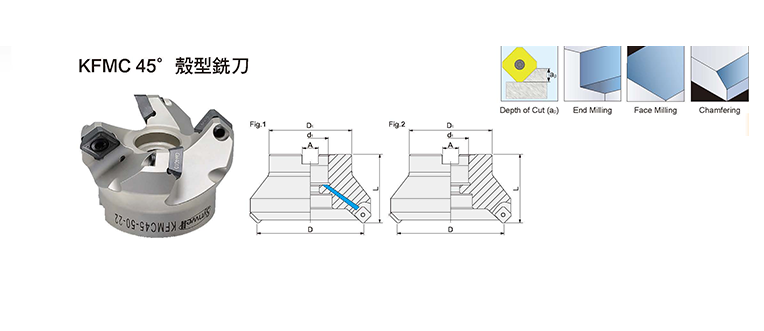

Product Name : KFMC45° Face Milling Cutter
Product Introduction

ACCESSORIES:

INSERTINSERT SCREWWRENCH
SE..1204 M5-11-7.0-55 T20
  • Inserts are optional accessories. Needs to be purchased additionally.
MODEL NO.TYPEDD1d1LAap max.TEETHINSERTFig
154.408.22.040 KFMC45-40-22 40 40 22 40 10.4 6 4 SE..1204 1
154.408.22.050 KFMC45-50-22 50 48 22 40 10.4 6 4 SE..1204 1
154.408.22.050-5T KFMC45-50-22-5T 50 48 22 40 10.4 6 5 SE..1204 1
154.408.22.063 KFMC45-63-22 63 48 22 40 10.4 6 5 SE..1204 1
154.408.27.080 KFMC45-80-27 80 62 27 50 12.4 6 6 SE..1204 1
154.408.32.100 KFMC45-100-32 100 78 32 50 14.4 6 7 SE..1204 1
154.408.40.125 KFMC45-125-40 125 89 40 63 16.4 6 8 SE..1204 1
54.408.40.160 KFMC45-160-40 160 89 40 63 16.4 6 10 SE..1204 1
154.408.68.080 KFMC45-80-25.4 80 50 25.4 50 9.5 6 6 SE..1204 1
154.408.72.080 KFMC45-80-31.75 80 62 31.75 50 12.7 6 6 SE..1204 1
154.408.72.100 KFMC45-100-31.75 10 78 31.75 50 12.7 6 7 SE..1204 1
154.408.77.125 KFMC45-125-38.1 125 80 38.1 63 15.9 6 8 SE..1204 1
154.402.86.160 KFM45-160-50.8 160 98 50.8 63 19.45 6 10 SE..1204 2
154.402.84.200 KFM45-200-47.625 200 128.75 47.625 63 25.4 6 12 SE..1204 2
