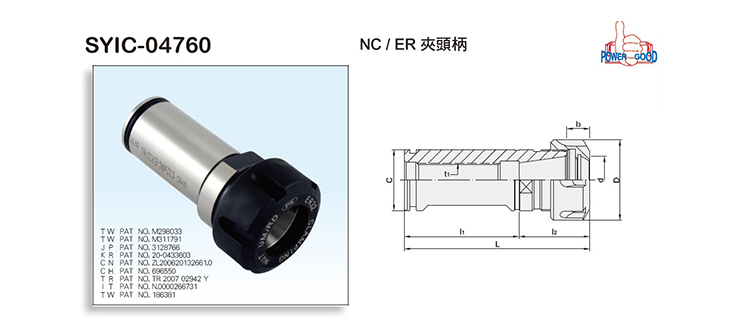

Product Name : NC/ER Collet Chuck
Product Introduction
  • his is specially suitable for CNC Machines but can also & be used for general machines.
  • At the end of body, there's an O-ring for sealing
MODEL NO.TYPE
C x d - I1
Ll2l3Dt1WEIGHT (KGS)
SYIC - 04762 C32 x NC/ER25 - 60 97 37 12 42 M18 x 1.5P 0.7
SYIC - 04764 C32 x NC/ER32 - 60 103 43 13 50 M22 x 1.5P 0.75
SYIC - 04766 C40 x NC/ER32 - 80 118 38 13 50 M22 x 1.5P 1.25
SYIC - 04768 C40 x NC/ER40 - 75 135 60 15 63 M28 x 1.5P 1.3
SYIC - 04770 C45 x NC/ER32 - 120 178 58 13 50 M22 x 1.5P 1.6
SYIC - 04772 C45 x NC/ER40 - 120 180 60 15 63 M28 x 1.5P 1.65
SYIC - 04782 C1-1/4" x NC/ER25 - 60 97 37 12 42 M18 x 1.5P 0.7
SYIC - 04784 C1-1/4" x NC/ER32 - 60 103 43 13 50 M22 x 1.5P 0.75
SYIC - 04786 C1-1/4" x NC/ER40 - 60 120 60 15 63 M22 x 1.5P 0.84
SYIC - 04788 C1-1/2" x NC/ER32 - 80 118 38 13 50 M22 x 1.5P 1.25
SYIC - 04790 C1-1/2" x NC/ER40 - 75 135 60 15 63 M28 x 1.5P 1.3
