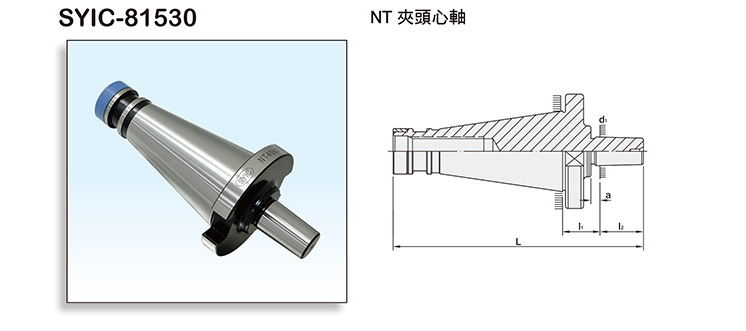

Product Name : NT Drill Chuck Arbor
Product Introduction
  • Concentricity: 0.005mm.
  • Roundness: 0.005mm.
  • Please inform draw bar size when making an order.



MODEL NO.TYPELl1l2d1aWEIGHT (KGS)
SYIC - 81512 NT30 x B16 113 20.6 24 15.733 5 0.35
SYIC - 81513 NT40 x B16 138 20.6 24 15.733 5 0.8
SYIC - 81514 NT50 x B16 176 26.2 24 15.733 5 2.85
SYIC - 81533 NT30 x JT3 118.95 19.6 30.95 20.599 5 0.45
SYIC - 81536 NT30 x JT6 112.4 18.6 25.4 17.17 4 0.4
SYIC - 81543 NT40 x JT3 144.95 20.6 30.95 20.599 5 0.95
SYIC - 81546 NT40 x JT6 139.4 20.6 25.4 17.17 4 0.85
SYIC - 81553 NT50 x JT3 182.95 26.2 30.95 20.599 5 3
SYIC - 81556 NT50 x JT6 176.4 24.2 25.4 17.17 4 2.9
