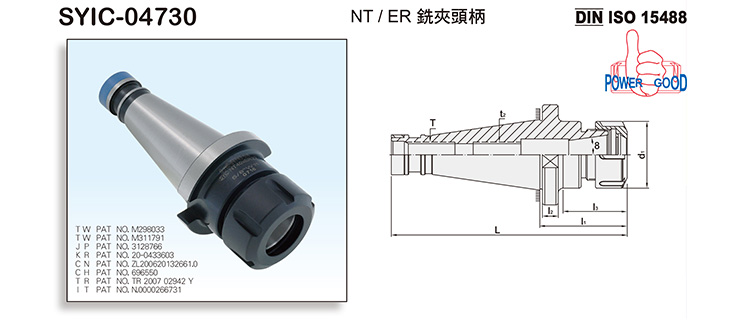

Product Name : NT/ER Collet Holder
Product Introduction
  • At the end of body, there's a plastic ring protecting the spindle from damage.
  • Can purchase holder alone. Each holder has been locked with a clamping nut, but without a spanner.
  • Please inform draw bar size when purchasing holder.



MODEL NO.TYPE DIN2080 x ER x I1LI2I3d1t2T DRAW BARWEIGHT (KGS)
SYIC - 04732 NT30 x ER16A - 45 113.4 8 29.4 28 M10 x 1.5P M12 x 1.75P or 1/2" - 12 0.5
SYIC - 04733 NT30 x ER20A - 45 113.4 8 32 34 M12 x 1.75P M12 x 1.75P or 1/2" - 12 0.6
SYIC - 04734 NT30 x ER25 - 55 123.4 8 42 42 M16 x 2.0P M12 x 1.75P or 1/2" - 12 0.65
SYIC - 04735 NT30 x ER32 - 60 128.4 8 48 50 M16 x 2.0P M12 x 1.75P or 1/2" - 12 0.8
SYIC - 04736 NT30 x ER40 - 75 143.4 8 63 63 M16 x 2.0P M12 x 1.75P or 1/2" - 12 0.9
SYIC - 04738 NT40 x ER16A - 45 138.4 10 30 28 M10 x 1.5P M16 x 2.0P or 5/8" - 11 0.95
SYIC - 04740 NT40 x ER20A - 45 138.4 10 30 34 M12 x 1.75P M16 x 2.0P or 5/8" - 11 1.2
SYIC - 04742 NT40 x ER25 - 55 148.4 10 40 42 M16 x 2.0P M16 x 2.0P or 5/8" - 11 1.25
SYIC - 04743 NT40 x ER32 - 60 153.4 10 45 50 M16 x 2.0P M16 x 2.0P or 5/8" - 11 1.3
SYIC - 04745 NT40 x ER40 - 70 161.8 10 53.8 63 M20 x 2.0P M16 x 2.0P or 5/8" - 11 1.35
SYIC - 04746 NT40 x ER50 - 80 173.4 10 68 78 M24 x 2.0P M16 x 2.0P or 5/8" - 11 2
SYIC - 04748 NT50 x ER32 - 75 201.8 12 49 50 M16 x 2.0P M24 x 3.0P or 1" - 8 3.2
SYIC - 04749 NT50 x ER40 - 80 206.8 12 59 63 M20 x 2.0P M24 x 3.0P or 1" - 8 3.4
SYIC - 04750 NT50 x ER50 - 80 206.8 12 62 78 M24 x 2.0P M24 x 3.0P or 1" - 8 3.7
