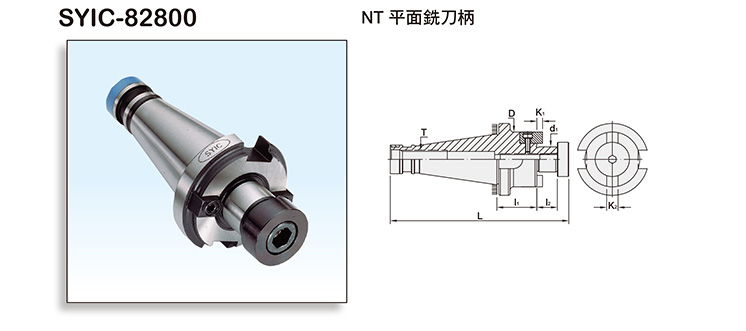

Product Name : NT Face Mill Arbor
Product Introduction
  • d1=the external dia. of face mill cutter.
  • There's a plastic ring at the end of the shank to protect machine spindle.
  • When making an order, please inform draw bar size.



MODEL NO.TYPE - d1DLl1l2K1K2TWEIGHT (KGS)
SYIC - 82802 NT30 x FMA25.40 46 139.4 35 20 4.5 9.52 1/2" - 12 or M12 x 1.75P 0.55
SYIC - 82803 NT30 x FMA31.75 60 141.4 35 22 5.7 12.7 1/2" - 12 or M12 x 1.75P 0.75
SYIC - 82804 NT30 x FMA38.10 70 148.9 35 25 6.87 15.87 1/2" - 12 or M12 x 1.75P 2.1
SYIC - 82807 NT40 x FMA25.40 63 164.4 35 20 4.5 9.52 5/8" - 11 or M16 x 2.0P 1.45
SYIC - 82808 NT40 x FMA31.75 63 166.4 35 22 5.7 12.7 5/8" - 11 or M16 x 2.0P 1.75
SYIC - 82809 NT40 x FMA38.10 70 173.4 35 25 6.87 15.87 5/8" - 11 or M16 x 2.0P 2
SYIC - 82810 NT40 x FMA50.80 98 178.4 35 36 9.75 19.05 5/8" - 11 or M16 x 2.0P 2.55
SYIC - 82811 NT40 x FMA47.62 128.75 149.4 24 32 12.5 25.4 5/8" - 11 or M16 x 2.0P 2.9
SYIC - 82813 NT50 x FMA25.40 50 207.8 45 20 4.5 9.52 1" - 8 or M24 x 3.0P 3.52
SYIC - 82814 NT50 x FMA31.75 60 200.8 45 22 5.7 12.7 1" - 8 or M24 x 3.0P 3.4
SYIC - 82815 NT50 x FMA38.10 70 217.3 45 25 6.87 15.87 1" - 8 or M24 x 3.0P 3.6
SYIC - 82816 NT50 x FMA50.80 90 221.8 45 36 9.75 19.05 1" - 8 or M24 x 3.0P 6
SYIC - 82817 NT50 x FMA47.62 128.75 182.8 24 32 12.5 25.4 1" - 8 or M24 x 3.0P 4.9
SYIC - 82827 NT30 x FMB22mm 42 136.4 35 19 4 10 1/2" - 12 or M12 x 1.75P 0.67
SYIC - 82828 NT30 x FMB27mm 60 139.4 35 20 5 12 1/2" - 12 or M12 x 1.75P 1
SYIC - 82829 NT30 x FMB32mm 65 141.4 35 22 6 14 1/2" - 12 or M12 x 1.75P 1.2
SYIC - 82830 NT30 x FMB40mm 80 148.9 35 25 7 16 1/2" - 12 or M12 x 1.75P 1.4
SYIC - 82831 NT40 x FMB22mm 48 161.4 35 19 4 10 5/8" - 11 or M16 x 2.0P 1.25
SYIC - 82832 NT40 x FMB27mm 58 164.4 35 20 5 12 5/8" - 11 or M16 x 2.0P 1.45
SYIC - 82833 NT40 x FMB32mm 65 166.4 35 22 6 14 5/8" - 11 or M16 x 2.0P 1.7
SYIC - 82834 NT40 x FMB40mm 80 173.9 35 25 7 16 5/8" - 11 or M16 x 2.0P 4.54
SYIC - 82835 NT50 x FMB22mm 48 204.8 45 19 4 10 1" - 8 or M24 x 3.0P 3.5
SYIC - 82836 NT50 x FMB27mm 58 207.8 45 20 5 12 1" - 8 or M24 x 3.0P 3.9
SYIC - 82837 NT50 x FMB32mm 65 209.8 45 22 6 14 1" - 8 or M24 x 3.0P 4
SYIC - 82838 NT50 x FMB40mm 80 217.3 45 25 7 16 1" - 8 or M24 x 3.0P 4.83
