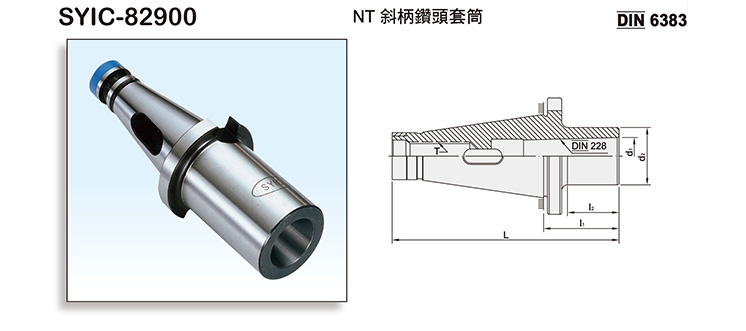

Product Name : NT Morse Taper Adapter
Product Introduction
  • Hardened & precision ground (I.D & 0.D).
  • Ronudness: 0.005mm.
  • MTA=TANG TYPE=DIN 228-B.
  • MTB=DRAW BAR TYPE=DIN 228-A.
  • Best selected top quality tools steel fully hardened and ground. Morse taper inside hole and outside shank.
  • Please inform draw bar size when making an order.



MODEL NO.TYPEl1l2Ld1d2TWEIGHT (KGS)
SYIC - 82900 NT30 x MTA2 55.5 42 123.9 17.78 32 1/2" - 12 or M12 x 1.75P 0.5
SYIC - 82901 NT30 x MTA3 75.6 63 144 23.825 36 1/2" - 12 or M12 x 1.75P 0.55
SYIC - 82902 NT40 x MTA2 25 11 118.4 17.78 32 5/8" - 11 or M16 x 2.0P 0.8
SYIC - 82903 NT40 x MTA3 48.6 35 142 23.825 40 5/8" - 11 or M16 x 2.0P 0.85
SYIC - 82904 NT40 x MTA4 83.6 69 177 31.267 48 5/8" - 11 or M16 x 2.0P 1.25
SYIC - 82905 NT40 x MTA5 170 156 263.4 44.399 63 5/8" - 11 or M16 x 2.0P 1.45
SYIC - 82907 NT50 x MTA2 23.2 5.5 150 17.78 32 1" - 8 or M24 x 3.0P 2.8
SYIC - 82908 NT50 x MTA3 33.2 13 160 23.825 40 1" - 8 or M24 x 3.0P 2.9
SYIC - 82909 NT50 x MTA4 63.2 43 190 31.267 48 1" - 8 or M24 x 3.0P 3
SYIC - 82910 NT50 x MTA5 86.2 66 213 44.399 63 1" - 8 or M24 x 3.0P 3.1
