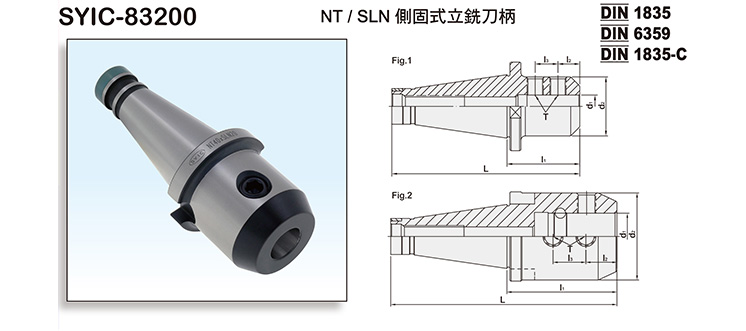

Product Name : NT/SLN Side Lock End Mill Holder
Product Introduction
  • Tolerance of internal hole: H5



MODEL NO.TYPE d1 - l1Ld2l2l3TFig.WEIGHT (KGS)
SYIC - 83230 NT30 x SLN6 - 40 108.4 25 18 - M6 x 1.0P 1 0.5
SYIC - 83231 NT30 x SLN8 - 40 108.4 28 20 - M8 x 1.25P 1 0.6
SYIC - 83232 NT30 x SLN10 - 40 108.4 35 20 - M10 x 1.5P 1 0.6
SYIC - 83233 NT30 x SLN12 - 50 118.4 42 22.5 - M12 x 1.75P 1 0.65
SYIC - 83234 NT30 x SLN16 - 50 118.4 48 24 - M14 x 2.0P 1 0.75
SYIC - 83235 NT30 x SLN20 - 63 131.4 52 25 - M16 x 2.0P 1 1.1
SYIC - 83236 NT30 x SLN25 - 80 148.4 63.5 24 25 M18 x 2.0P 1 1.2
SYIC - 83240 NT40 x SLN6 - 50 143.4 25 18 - M6 x 1.0P 1 0.9
SYIC - 83241 NT40 x SLN8 - 50 143.4 28 18 - M8 x 1.25P 1 0.95
SYIC - 83242 NT40 x SLN10 - 50 143.4 35 20 - M10 x 1.5P 1 1.1
SYIC - 83243 NT40 x SLN12 - 50 143.4 42 22.5 - M12 x 1.75P 1 1
SYIC - 83244 NT40 x SLN16 - 63 156.4 48 24 - M14 x 2.0P 1 1.4
SYIC - 83245 NT40 x SLN20 - 63 156.4 52 25 - M16 x 2.0P 1 1.45
SYIC - 83246 NT40 x SLN25 - 80 173.4 65 24 25 M18 x 2.0P 1 2.1
SYIC - 83247 NT40 x SLN32 - 80 173.4 72 24 28 M20 x 2.0P 1 2.5
SYIC - 83250 NT50 x SLN6 - 63 189.8 25 18 - M6 x 1.0P 1 2.9
SYIC - 83251 NT50 x SLN8 - 63 189.8 28 18 - M8 x 1.25P 1 3
SYIC - 83252 NT50 x SLN10 - 63 189.8 35 20 - M10 x 1.5P 1 3.2
SYIC - 83253 NT50 x SLN12 - 63 189.8 42 22.5 - M12 x 1.75P 1 3.3
SYIC - 83254 NT50 x SLN16 - 63 189.8 48 24 - M14 x 2.0P 1 3.5
SYIC - 83255 NT50 x SLN20 - 63 189.8 52 25 - M16 x 2.0P 1 3.6
SYIC - 83256 NT50 x SLN25 - 80 206.8 65 24 25 M18 x 2.0P 1 4.2
SYIC - 83257 NT50 x SLN32 - 80 206.8 72 24 28 M20 x 2.0P 1 4.4
SYIC - 83258 NT50 x SLN40 - 100 226.8 90 30 32 M20 x 2.0P 1 4.4
SYIC - 83261 NT50 x SLN40 - 120 246.8 90 30 32 M20 x 2.0P 1 4.2
SYIC - 83259 NT50 x SLN42 - 100 226.8 90 30 32 M20 x 2.0P 1 4.6
SYIC - 83263 NT50 x SLN50 - 120 246.8 95 35 35 M24 x 2.0P 1 4.8
SYIC - 83265 NT50 x SLN63 - 120 246.8 125 40 40 M20 x 2.0P 1 5.4
SYIC - 83267 NT50 x SLN50.8 - 120 246.8 95 33.1 28.58 M20 x 2.0P 1 5
SYIC - 83269 NT50 x SLN50.8 - 120 246.8 95 33.1 28.58 M20 x 2.0P 2 5
