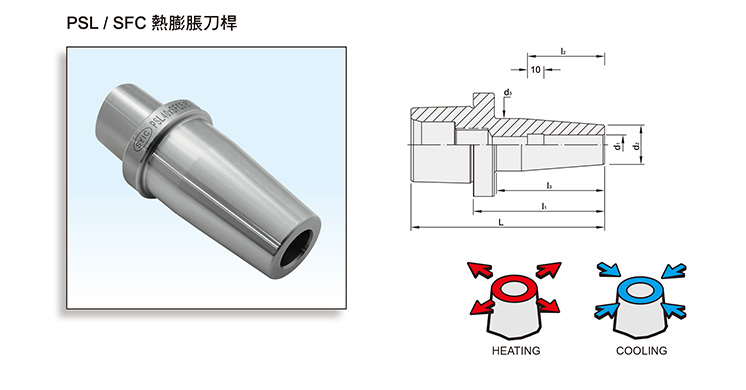

Product Name : PSL/SFC SHRINK FIT CHUCK
Product Introduction

METRIC

MODEL NO.TYPELl1l2l3d1d2d3
161.651.06.050 PSL32 x SFC6 - 50 69 50 36 41 6 12 18
161.651.08.050 PSL32 x SFC8 - 50 69 50 36 41 8 14 20
161.651.09.050 PSL32 x SFC9 - 50 69 50 42 41 9 14 20
161.651.10.050 PSL32 x SFC10 - 50 69 50 42 40.1 10 16 22.3
161.651.11.060 PSL32 x SFC11 - 60 79 60 47 51 11 17 23
161.651.12.060 PSL32 x SFC12 - 60 79 60 47 51 12 18 26
162.651.06.050 PSL40 x SFC6 - 50 74 50 36 40 6 20 26
162.651.08.050 PSL40 x SFC8 - 50 74 50 36 40 8 20 26
162.651.09.050 PSL40 x SFC9 - 50 74 50 42 41 9 20 26.5
162.651.10.050 PSL40 x SFC10 - 50 74 50 32 41 10 24 30
162.651.11.060 PSL40 x SFC11 - 60 84 60 37 51 11 24 32
162.651.12.060 PSL40 x SFC12 - 60 84 60 37 51 12 24 32
162.651.13.060 PSL40 x SFC13 - 60 84 60 47 51 13 27 34
162.651.14.060 PSL40 x SFC14 - 60 84 60 47 51 14 27 34
162.651.16.060 PSL40 x SFC16 - 60 84 60 50 51 16 27 34
162.651.18.060 PSL40 x SFC18 - 60 84 60 50 52 18 33 40
162.651.20.065 PSL40 x SFC20 - 65 89 65 52 57 20 33 40
