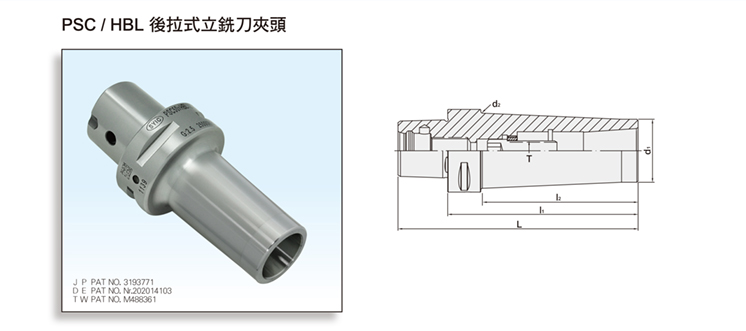

Product Name : PSC/HBL SLIM-FIT COLLET CHUCK
Product Introduction
  • Every tool holder reaches revolution of G2.5 25,000 rpm, with an inspection report.
MODEL NO.TYPELl1l2d1d2T
140.275.12.090 PSC32 x HBL12 - 90 109 90 75 31.75 32 M10 x 1.5P
141.275.12.090 PSC40 x HBL12 - 90 114 90 68.4 31.75 36.85 M10 x 1.5P
141.275.20.105 PSC40 x HBL20 - 105 129 105 85 38.1 40 M12 x 1.75P
142.275.12.105 PSC50 x HBL12 - 105 135 105 82.1 31.75 38.04 M10 x 1.5P
142.275.20.115 PSC50 x HBL20 - 115 145 115 94.04 38.1 45.3 M12 x 1.75P
142.275.25.120 PSC50 x HBL25 - 120 150 120 100 44.45 50 M16 x 2.0P
143.275.12.100 PSC63 x HBL12 - 100 138 100 69.9 31.75 36.9 M10 x 1.5P
143.275.20.120 PSC63 x HBL20 - 120 158 120 91.4 38.1 45.2 M12 x 1.75P
143.275.25.120 PSC63 x HBL25 - 120 158 120 92.6 44.45 51.6 M16 x 2.0P
