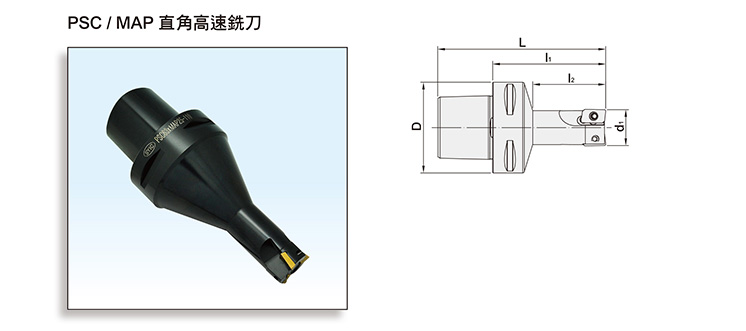

Product Name : PSC/MAP THROW-AWAY END MILL CUTTER
Product Introduction
  • Extending cutter use life: There is coating on the surface of cutting tool, which is anti-rust and extends the use life of cutters.
  • Stable insert seat: The special designed insert seats can effectively avoid the influence from the tolerance of the inserts and provide best cutting surface.
  • Excellent metal chips removal capacity: Enlarged chipbreaker effectively discharges the metal chips, fastens table feed and raises processing efficiency.
  • Superior right angle: It provides perfect processing
MODEL NO.TYPELl1l2Dd1TEETHINSERTINSERT SCREWWRENCH
140.468.16.050 PSC32 x MAP16 - 50 - 2T 69 50 25 32 16 2 AP..1135 M2.5-6.0-3.5-60 T8
140.468.20.050 PSC32 x MAP20 - 50 - 2T 69 50 25 32 20 2 AP..1135 M2.5-6.0-3.5-60 T8
140.469.20.050 PSC32 x MAP20 - 50 - 3T 69 50 25 32 20 3 AP..1135 M2.5-6.0-3.5-60 T8
140.468.25.050 PSC32 x MAP25 - 50 - 2T 69 50 32 32 25 2 AP..1604 M4-10-5.7-60 T15
140.469.25.050 PSC32 x MAP25 - 50 - 3T 69 50 32 32 25 3 AP..1135 M2.5-6.0-3.5-60 T8
140.468.32.050 PSC32 x MAP32 - 50 - 2T 69 50 35 32 32 2 AP..1604 M4-10-5.7-60 T15
141.468.16.050 PSC40 x MAP16 - 50 - 2T 74 50 25 40 16 2 AP..1135 M2.5-6.0-3.5-60 T8
141.468.20.050 PSC40 x MAP20 - 50 - 2T 74 50 25 40 20 2 AP..1135 M2.5-6.0-3.5-60 T8
141.468.25.055 PSC40 x MAP25 - 55 - 2T 79 55 32 40 25 2 AP..1604 M4-10-5.7-60 T15
141.469.25.055 PSC40 x MAP25 - 55 - 3T 79 55 32 40 25 3 AP..1135 M2.5-6.0-3.5-60 T8
141.468.32.065 PSC40 x MAP32 - 65 - 2T 89 65 40 40 32 2 AP..1604 M4-10-5.7-60 T15
142.469.20.095 PSC50 x MAP20 - 95 - 3T 125 95 40 50 20 3 AP..1135 M2.5-6.0-3.5-60 T8
142.469.25.095 PSC50 x MAP25 - 95 - 3T 125 95 45 50 25 3 AP..1135 M2.5-6.0-3.5-60 T8
142.468.32.065 PSC50 x MAP32 - 65 - 2T 95 65 40 50 32 2 AP..1604 M4-10-5.7-60 T15
142.471.50.060 PSC50 x MAP50 - 60 - 5T 90 60 60 50 50 5 AP..1604 M4-10-5.7-60 T15
142.471.63.060 PSC50 x MAP63 - 60 - 5T 90 60 60 50 63 5 AP..1604 M4-10-5.7-60 T15
143.469.20.110 PSC63 x MAP20 - 110 - 3T 148 110 40 63 20 3 AP..1135 M2.5-6.0-3.5-60 T8
143.468.20.165 PSC63 x MAP20 - 165 - 2T 203 165 60 63 20 2 AP..1135 M2.5-6.0-3.5-60 T8
143.469.25.110 PSC63 x MAP25 - 110 - 3T 148 110 45 63 25 3 AP..1135 M2.5-6.0-3.5-60 T8
143.469.32.080 PSC63 x MAP32 - 80 - 3T 118 80 40 63 32 3 AP..1135 M2.5-6.0-3.5-60 T8
143.469.32.110 PSC63 x MAP32 - 110 - 3T 148 110 50 63 32 3 AP..1135 M2.5-6.0-3.5-60 T8
143.470.40.080 PSC63 x MAP40 - 80 - 4T 118 80 40 63 40 4 AP..1135 M2.5-6.0-3.5-60 T8
143.471.40.080 PSC63 x MAP40 - 80 - 5T 118 80 40 63 40 5 AP..1135 M2.5-6.0-3.5-60 T8
143.469.40.100 PSC63 x MAP40 - 100 - 3T 138 100 50 63 40 3 AP..1604 M4-10-5.7-60 T15
143.470.50.080 PSC63 x MAP50 - 80 - 4T 118 80 40 63 50 4 AP..1604 M4-10-5.7-60 T15
143.471.63.060 PSC63 x MAP63 - 60 - 5T 98 60 38 63 63 5 AP..1604 M4-10-5.7-60 T15
143.471.66.060 PSC63 x MAP66 - 60 - 5T 98 60 60 63 66 5 AP..1604 M4-10-5.7-60 T15
143.471.66.080 PSC63 x MAP66 - 80 - 5T 118 80 80 63 66 5 AP..1604 M4-10-5.7-60 T15
143.472.80.060 PSC63 x MAP80 - 60 - 6T 98 60 60 63 80 6 AP..1604 M4-10-5.7-60 T15
