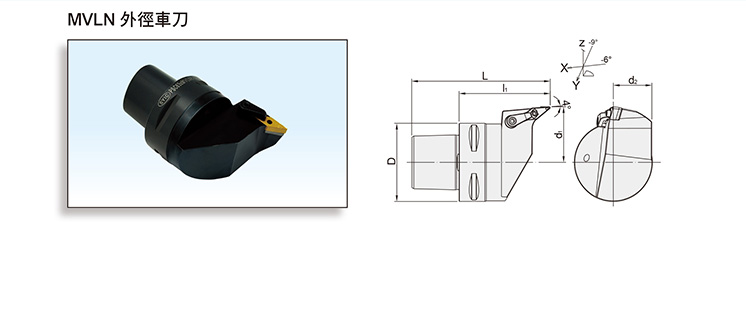

Product Name : PSC/MVLN EXTERNAL TURNING TOOL
Product Introduction
MODEL NO.TYPELl1Dd1d2InsertClampShimScrewScrew
140.479.16R.050 PSC32-MVLNR-20050-16 69 50 32 20 18.1 VN1604 MC622 SMV-322 MS630 MLP34L-A
140.479.16L.050 PSC32-MVLNL-20050-16 69 50 32 20 18.1
141.479.16R.055 PSC40-MVLNR-27055-16 79 55 40 27 22.5
141.479.16L.055 PSC40-MVLNL-27055-16 79 55 40 27 22.5
142.479.16R.060 PSC50-MVLNR-35060-16 90 60 50 35 28.65
142.479.16L.060 PSC50-MVLNL-35060-16 90 60 50 35 28.65
143.479.16R.075 PSC63-MVLNR-45075-16 113 75 63 45 31
143.479.16L.075 PSC63-MVLNL-45075-16 113 75 63 45 31
  • Inserts are optional accessories. Needs to be purchased additionally.
