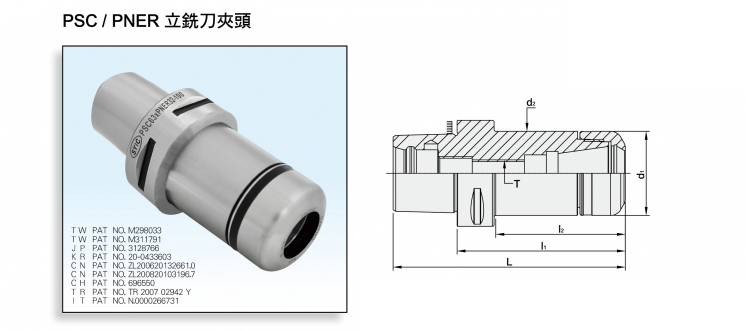

Product Name : PSC/PNER COLLET CHUCK
Product Introduction
  • Runout accuracy: within 3μm.
  • The gauge line of PNER collet is shorter, so PNER collet sits in the PNER holder better than conventional ER collet chucks, which improves the overall runout accuracy of PNER collet chuck and stability of machining.
  • The pre-balance can reach G2.5 25,000 rpm, with an inspection report.
  • Thread with all grinding.



MODEL NO.TYPELl1l2d1d2TSIZE RANGE
140.273.16.045 PSC32 x PNER16 - 45 64 45 29 30 30 - 3.0 ~ 10
140.273.20.045 PSC32 x PNER20 - 45 64 45 30 32 32 - 3.0 ~ 13
141.273.16.055 PSC40 x PNER16 - 55 79 55 30 30 30 - 3.0 ~ 10
141.273.20.055 PSC40 x PNER20 - 55 79 55 31 32 32 - 3.0 ~ 13
142.273.16.060 PSC50 x PNER16 - 60 90 60 34 30 30 - 3.0 ~ 10
142.273.16.100 PSC50 x PNER16 - 100 130 100 74 30 30 M10x1.5P 3.0 ~ 10
142.273.20.060 PSC50 x PNER20 - 60 90 60 34 32 32 - 3.0 ~ 13
142.273.25.060 PSC50 x PNER25 - 60 90 60 37 40 40 - 3.0 ~ 16
142.273.32.060 PSC50 x PNER32 - 60 90 60 37 50 50 - 3.0 ~ 20
143.273.16.060 PSC63 x PNER16 - 60 98 60 35 30 30 - 3.0 ~ 10
143.273.16.100 PSC63 x PNER16 - 100 138 100 75 30 30 M10x1.5P 3.0 ~ 10
143.273.20.060 PSC63 x PNER20 - 60 98 60 35 32 32 - 3.0 ~ 13
143.273.20.100 PSC63 x PNER20 - 100 138 100 75 32 32 M12x1.75P 3.0 ~ 13
143.273.25.060 PSC63 x PNER25 - 60 98 60 35 40 40 - 3.0 ~ 16
143.273.25.100 PSC63 x PNER25 - 100 138 100 75 40 40 M16x2.0P 3.0 ~ 16
143.273.25.130 PSC63 x PNER25 - 130 168 130 105 40 40 M16x2.0P 3.0 ~ 16
143.273.25.160 PSC63 x PNER25 - 160 198 160 130 40 40 M16x2.0P 3.0 ~ 16
143.273.32.060 PSC63 x PNER32 - 60 98 60 35 50 50 - 3.0 ~ 20
143.273.32.100 PSC63 x PNER32 - 100 138 100 75 50 50 M16x2.0P 3.0 ~ 20
143.273.32.130 PSC63 x PNER32 - 130 168 130 105 50 50 M16x2.0P 3.0 ~ 20
143.273.40.060 PSC63 x PNER40 - 60 98 60 38 63 63 - 6.0 ~ 26
143.273.40.100 PSC63 x PNER40 - 100 138 100 68 63 63 M20x2.0P 6.0 ~ 26
