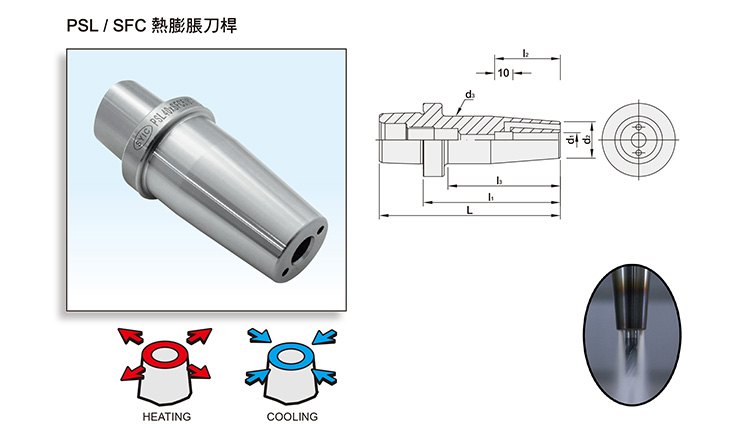

Product Name : PSL/SFC SHRINK FIT CHUCK with CP coolant hole type
Product Introduction
  • Coolant flute design (FID) on the front nose of PSLxSLN End Mill Holder could centralize coolant, improve the metal chips removal capability, cool down the workpiece, and improve the surface precision of workpiece.
  • Useful for cutting tools without coolant holes.



METRIC

MODEL NO.TYPELl1l2l3d1d2d3
161.651.06.050B PSL32 x SFC6 - 50 CP 69 50 36 41 6 21 27
161.651.08.050B PSL32 x SFC8 - 50 CP 69 50 36 41 8 21 27
161.651.09.050B PSL32 x SFC9 - 50 CP 69 50 42 41 9 24 30.5
161.651.10.050B PSL32 x SFC10 - 50 CP 69 50 42 41 10 24 30.5
161.651.11.060B PSL32 x SFC11 - 60 CP 79 60 47 51 11 24 32
161.651.12.060B PSL32 x SFC12 - 60 CP 79 60 47 51 12 24 32
162.651.06.050B PSL40 x SFC6 - 50 CP 74 50 36 40 6 21 27
162.651.08.050B PSL40 x SFC8 - 50 CP 74 50 36 40 8 21 27
162.651.09.050B PSL40 x SFC9 - 50 CP 74 50 42 41 9 21 30
162.651.10.050B PSL40 x SFC10 - 50 CP 74 50 42 41 10 24 30
162.651.11.060B PSL40 x SFC11 - 60 CP 84 60 47 51 11 24 32
162.651.12.060B PSL40 x SFC12 - 60 CP 84 60 47 51 12 24 32
162.651.13.060B PSL40 x SFC13 - 60 CP 84 60 47 51 13 27 34
162.651.14.060B PSL40 x SFC14 - 60 CP 84 60 47 51 14 27 34
162.651.16.060B PSL40 x SFC16 - 60 CP 84 60 50 51 16 27 34
162.651.18.060B PSL40 x SFC18 - 60 CP 84 60 50 52 18 33 40
162.651.20.065B PSL40 x SFC20 - 65 CP 89 65 52 57 20 33 40



INCHES

MODEL NO.TYPELl1l2l3d1d2d3
161.651.54.200B PSL32 x SFC1/4" - 2" CP 2.748 2 1.417 1.646 0.25 0.709 0.945
161.651.55.200B PSL32 x SFC5/16'' - 2'' CP 2.748 2 1.417 1.646 0.25 0.709 0.945
161.651.56.200B PSL32 x SFC3/8" - 2" CP 2.748 2 1.654 1.649 0.375 0.945 1.206
161.651.58.236B PSL32 x SFC1/2" - 2.36" CP 3.11 2.36 1.85 2.047 0.5 1.102 1.339
162.651.54.200B PSL40 x SFC1/4" - 2" CP 2.945 2 1.417 1.606 0.25 0.709 0.945
162.651.55.200B PSL40 x SFC5/16" - 2" CP 2.945 2 1.417 1.606 0.3125 0.79 0.945
162.651.56.200B PSL40 x SFC3/8" - 2" CP 2.945 2 2.835 1.646 0.375 0.945 1.195
162.651.58.250B PSL40 x SFC1/2" - 2.5" CP 3.45 2.5 1.85 2.146 0.5 1.102 1.339
162.651.61.250B PSL40 x SFC5/8" - 2.5" CP 3.45 2.5 1.969 2.146 0.625 1.063 1.339
162.651.64.250B PSL40 x SFC3/4" - 2.5" CP 3.45 2.5 2.047 2.185 0.75 1.417 1.654
