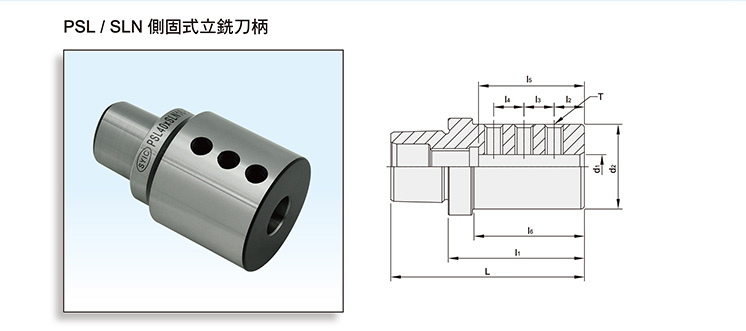

Product Name : PSL/SLN SIDE LOCK END MILL HOLDER
Product Introduction



METRIC

MODEL NO.TYPE - d1Ll1l2l3l4l5l6d2T
161.653.06.045 PSL32 x SLN6 - 45 64 45 10 10 - 36 36 25 M6
161.653.08.045 PSL32 x SLN8 - 45 64 45 10 10 10 35 36.5 28 M6
161.653.10.050 PSL32 x SLN10 - 50 69 50 8 12 12 39 40.5 32 M6
161.653.12.055 PSL32 x SLN12 - 55 74 55 15 15 - 44 47 32 M8
161.653.14.055 PSL32 x SLN14 - 55 74 55 15 15 - 44 47 32 M8
161.653.16.060 PSL32 x SLN16 - 60 79 60 8 12 12 47 52 32 M8
161.653.18.060 PSL32 x SLN18 - 60 79 60 8 12 12 47 52 32 M8
161.653.20.060 PSL32 x SLN20 - 60 55 60 8 12 12 50 52 32 M8
162.653.06.045 PSL40 x SLN6 - 45 69 45 10 10 - 35 32 25 M6
162.653.08.045 PSL40 x SLN8 - 45 69 45 10 10 10 35 33 28 M6
162.653.10.050 PSL40 x SLN10 - 50 74 50 8 12 12 39 39.5 35 M6
162.653.12.055 PSL40 x SLN12 - 55 79 55 15 15 - 44 47 40 M8
162.653.14.055 PSL40 x SLN14 - 55 79 55 15 15 - 44 47 40 M8
162.653.16.055 PSL40 x SLN16 - 55 79 55 8 12 12 47 47 40 M8
162.653.18.060 PSL40 x SLN18 - 60 84 60 8 12 12 47 52 40 M8
162.653.20.060 PSL40 x SLN20 - 60 84 60 8 12 12 50 52 40 M8
162.653.25.065 PSL40 x SLN25 - 65 89 65 8 12 12 51 57 40 M8
162.653.32.075 PSL40 x SLN32 - 75 99 75 12 18 18 61 67 50 M8



INCHES

MODEL NO.TYPE - d1Ll1l2l3l4l5l6d2T
161.653.54.177 PSL32 x SLN1/4" - 1.77" 2.519 1.77 0.394 0.394 - 1.38 1.417 0.78 1/4''-28
161.653.55.177 PSL32 x SLN5/16" - 1.77" 2.519 1.77 0.394 0.394 - 1.38 1.378 0.88 1/4''-28
161.653.56.197 PSL32 x SLN3/8" - 1.97" 2.717 1.97 0.315 0.472 0.472 1.535 1.575 1 1/4''-28
161.653.58.217 PSL32 x SLN1/2" - 2.17" 2.913 2.17 0.591 0.591 - 1.732 1.85 1.25 5/16''-24
162.653.54.177 PSL40 x SLN1/4" - 1.77" 2.72 1.77 0.394 0.394 - 1.38 1.26 0.78 1/4''-28
162.653.55.177 PSL40 x SLN5/16" - 1.77" 2.72 1.77 0.394 0.394 - 1.38 1.339 0.88 1/4''-28
162.653.56.197 PSL40 x SLN3/8" - 1.97" 2.91 1.97 0.315 0.472 0.472 1.535 1.535 1 1/4''-28
162.653.58.217 PSL40 x SLN1/2" - 2.17" 3.11 2.17 0.591 0.591 - 1.732 1.811 1.25 5/16''-24
162.653.59.217 PSL40 x SLN9/16" - 2.17" 3.11 2.17 0.591 0.591 - 1.85 1.831 1.437 5/16''-24
162.653.61.217 PSL40 x SLN5/8" - 2.17" 3.11 2.17 0.315 0.472 0.472 1.73 1.813 1.5 5/16''-24
