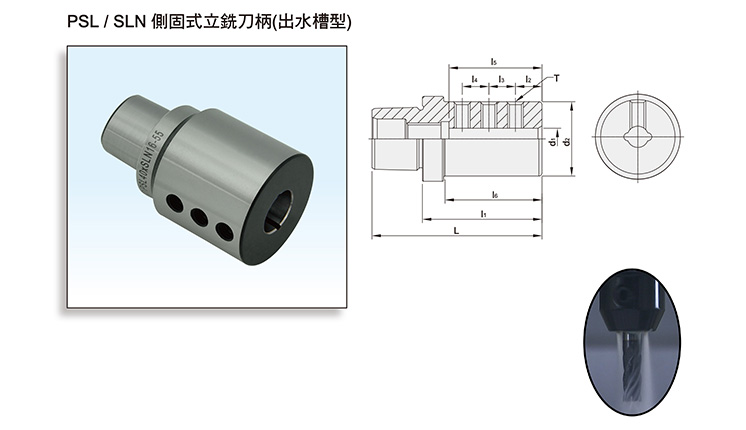

Product Name : PSL/SLN SIDE LOCK END MILL HOLDER with FID coolant flutes
Product Introduction
  • Coolant flute design (FID) on the front nose of PSLxSLN End Mill Holder could centralize coolant, improve the metal chips removal capability, cool down the workpiece, and improve the surface precision of workpiece.
  • Useful for cutting tools without coolant holes.

METRIC

MODEL NO.TYPE - d1Ll1l2l3l4l5l6d2T
161.653.06.045B PSL32 x SLN6 - 45 FID 64 45 10 10 - 36 36 25 M6
161.653.08.045B PSL32 x SLN8 - 45 FID 64 45 10 10 10 35 36.5 28 M6
161.653.10.050B PSL32 x SLN10 - 50 FID 69 50 8 12 12 39 40.5 32 M6
161.653.12.055B PSL32 x SLN12 - 55 FID 74 55 15 15 - 44 47 32 M8
161.653.14.055B PSL32 x SLN14 - 55 FID 74 55 15 15 - 44 47 32 M8
161.653.16.060B PSL32 x SLN16 - 60 FID 79 60 8 12 12 47 52 32 M8
161.653.18.060B PSL32 x SLN18 - 60 FID 79 60 8 12 12 47 52 32 M8
161.653.20.060B PSL32 x SLN20 - 60 FID 55 60 8 12 12 50 52 32 M8
162.653.06.045B PSL40 x SLN6 - 45 FID 69 45 10 10 - 35 32 25 M6
162.653.08.045B PSL40 x SLN8 - 45 FID 69 45 10 10 10 35 33 28 M6
162.653.10.050B PSL40 x SLN10 - 50 FID 74 50 8 12 12 39 39.5 35 M6
162.653.12.055B PSL40 x SLN12 - 55 FID 79 55 15 15 - 44 47 40 M8
162.653.14.055B PSL40 x SLN14 - 55 FID 79 55 15 15 - 44 47 40 M8
162.653.16.055B PSL40 x SLN16 - 55 FID 79 55 8 12 12 47 47 40 M8
162.653.18.060B PSL40 x SLN18 - 60 FID 84 60 8 12 12 47 52 40 M8
162.653.20.060B PSL40 x SLN20 - 60 FID 84 60 8 12 12 50 52 40 M8
162.653.25.065B PSL40 x SLN25 - 65 FID 89 65 8 12 12 51 57 40 M8
162.653.32.075B PSL40 x SLN32 - 75 FID 99 75 12 18 18 61 67 50 M8



INCHES

MODEL NO.TYPE - d1Ll1l2l3l4l5l6d2T
161.653.54.177B PSL32 x SLN1/4" - 1.77" FID 2.519 1.77 0.394 0.394 - 1.38 1.417 0.78 1/4''-28
161.653.55.177B PSL32 x SLN5/16" - 1.77" FID 2.519 1.77 0.394 0.394 - 1.38 1.378 0.88 1/4''-28
161.653.56.197B PSL32 x SLN3/8" - 1.97" FID 2.717 1.97 0.315 0.472 0.472 1.535 1.575 1 1/4''-28
161.653.58.217B PSL32 x SLN1/2" - 2.17" FID 2.913 2.17 0.591 0.591 - 1.732 1.85 1.25 5/16''-24
162.653.54.177B PSL40 x SLN1/4" - 1.77" FID 2.72 1.77 0.394 0.394 - 1.38 1.26 0.78 1/4''-28
162.653.55.177B PSL40 x SLN5/16" - 1.77" FID 2.72 1.77 0.394 0.394 - 1.38 1.339 0.88 1/4''-28
162.653.56.197B PSL40 x SLN3/8" - 1.97" FID 2.91 1.97 0.315 0.472 0.472 1.535 1.535 1 1/4''-28
162.653.58.217B PSL40 x SLN1/2" - 2.17" FID 3.11 2.17 0.591 0.591 - 1.732 1.811 1.25 5/16''-24
162.653.59.217B PSL40 x SLN9/16" - 2.17" FID 3.11 2.17 0.591 0.591 - 1.85 1.831 1.437 5/16''-24
162.653.61.217B PSL40 x SLN5/8" - 2.17" FID 3.11 2.17 0.315 0.472 0.472 1.73 1.813 1.5 5/16''-24
