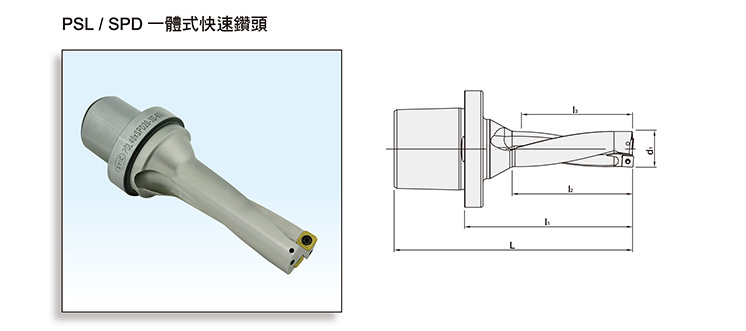

Product Name : PSL/SPD HIGH SPEED DRILL
Product Introduction
  • Drilling depth is three times longer than the diameter of the High Speed Drill.
  • The material is anti-vibration tool steel.
  • The whole body is treated with fine grinding after hardening in order to raise the rigidity and stability and prevent from deformation.
  • There is special coating on the surface of the high speed drill, which decreases the wear rate and extends the use life of the drill.



ACCESSORIES

INSERTSCREWWRENCH
SP..0502 M2-4.3-2.7-60 T6
SP..0602 M2.2-5.2-3.1-60 T7
SP..07T3 M2.5-6.33-3.5-48 T8
SP..0904 M3.5-8.4-5.0-60 T10



MODEL NO.TYPEd1Ll1l2l3INSERT
162.685.15.045 PSL40 x SPD15 - 3D - 45 15 82 70 50 45 SP..0502
162.685.16.048 PSL40 x SPD16 - 3D - 48 16 86 74 53 48 SP..0602
162.685.17.051 PSL40 x SPD17 - 3D - 51 17 89 77 56 51 SP..0602
162.685.18.054 PSL40 x SPD18 - 3D - 54 18 93 81 59 54 SP..0602
162.685.19.057 PSL40 x SPD19 - 3D - 57 19 96 84 62 57 SP..0602
162.685.20.060 PSL40 x SPD20 - 3D - 60 20 101 89 65 60 SP..0602
162.685.21.063 PSL40 x SPD21 - 3D - 63 21 104 92 68 63 SP..0602
162.685.22.066 PSL40 x SPD22 - 3D - 66 22 107 95 71 66 SP..07T3
162.685.23.069 PSL40 x SPD23 - 3D - 69 23 111 99 74 69 SP..07T3
162.685.24.072 PSL40 x SPD24 - 3D - 72 24 115 103 77 72 SP..07T3
162.685.25.075 PSL40 x SPD25 - 3D - 75 25 119 107 80 75 SP..07T3
162.685.26.078 PSL40 x SPD26 - 3D - 78 26 122 110 83 78 SP..07T3
162.685.27.081 PSL40 x SPD27 - 3D - 81 27 125 113 86 81 SP..07T3
162.685.28.084 PSL40 x SPD28 - 3D - 84 28 129 117 89 84 SP..0904
162.685.29.087 PSL40 x SPD29 - 3D - 87 29 132 120 92 87 SP..0904
162.685.30.090 PSL40 x SPD30 - 3D - 90 30 135 123 95 90 SP..0904



MODEL NO.TYPEd1Ll1l2l3INSERT
162.685.15.5.047 PSL40 x SPD15.5 - 3D - 47 15.5 96 84 52 47 SP..0602
162.685.16.5.050 PSL40 x SPD16.5 - 3D - 50 16.5 100 88 55 50 SP..0602
162.685.17.5.053 PSL40 x SPD17.5 - 3D - 53 17.5 104 92 58 53 SP..0602
162.685.18.5.056 PSL40 x SPD18.5 - 3D - 56 18.5 107 95 61 56 SP..0602
162.685.20.62.062 PSL40 x SPD20.62 - 3D - 62 20.62 115 103 67 62 SP..0602
162.685.22.23.067 PSL40 x SPD22.23 - 3D - 67 22.23 120 108 72 67 SP..07T3
162.685.25.4.077 PSL40 x SPD25.4 - 3D - 77 25.4 133 121 82 77 SP..07T3
162.685.28.59.086 PSL40 x SPD28.59 - 3D - 86 28.59 143 131 91 86 SP..0904



MODEL NO.TYPEd1Ll1l2l3INSERT
162.685.17.068 PSL40 x SPD17 - 4D - 68 17 118 106 73 68 SP..0602
162.685.18.072 PSL40 x SPD18 - 4D - 72 18 123 111 77 72 SP..0602
162.685.19.076 PSL40 x SPD19 - 4D - 76 19 127 115 81 76 SP..0602
162.685.20.080 PSL40 x SPD20 - 4D - 80 20 133 121 85 80 SP..0602
162.685.21.084 PSL40 x SPD21 - 4D - 84 21 137 125 89 84 SP..0602
162.685.22.088 PSL40 x SPD22 - 4D - 88 22 141 129 93 88 SP..07T3
162.685.23.092 PSL40 x SPD23 - 4D - 92 23 146 134 97 92 SP..07T3
162.685.24.096 PSL40 x SPD24 - 4D - 96 24 151 139 101 96 SP..07T3
162.685.25.100 PSL40 x SPD25 - 4D - 100 25 156 144 105 100 SP..07T3
162.685.26.104 PSL40 x SPD26 - 4D - 104 26 160 148 109 104 SP..07T3
162.685.27.108 PSL40 x SPD27 - 4D - 108 27 164 152 113 108 SP..07T3
162.685.28.112 PSL40 x SPD28 - 4D - 112 28 169 157 117 112 SP..0904
162.685.29.116 PSL40 x SPD29 - 4D - 116 29 173 161 121 116 SP..0904
162.685.30.120 PSL40 x SPD30 - 4D - 120 30 177 165 125 120 SP..0904



MODEL NO.TYPEd1Ll1l2l3INSERT
162.685.17.5.070 PSL40 x SPD17.5 - 4D - 70 17.5 121 109 75 70 SP..0602
162.685.18.5.074 PSL40 x SPD18.5 - 4D - 74 18.5 125 113 79 74 SP..0602
162.685.20.62.083 PSL40 x SPD20.62 - 4D - 83 20.62 136 124 88 83 SP..0602
162.685.22.23.089 PSL40 x SPD22.23 - 4D - 89 22.23 142 130 94 89 SP..07T3
162.685.25.4.102 PSL40 x SPD25.4 - 4D - 102 25.4 158 146 107 102 SP..07T3
162.685.28.59.115 PSL40 x SPD28.59 - 4D - 115 28.59 172 160 120 115 SP..0904
