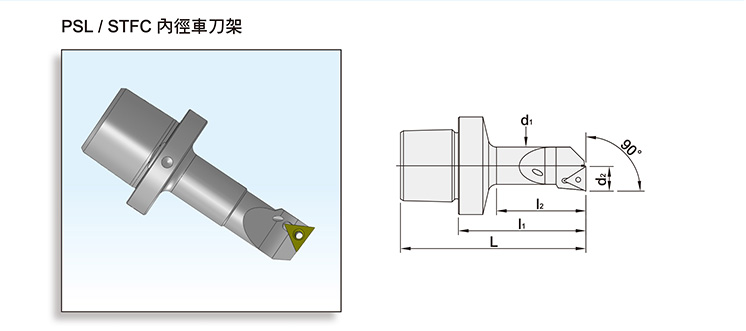

Product Name : PSL/STFC INTERNAL BORING BAR
Product Introduction
MODEL NO.TYPE - d1Ll1l2d1d2INSERT
161.764.16R.060 PSL32 - STFCR16-D11 79 60 50 16 11 TP..1103
161.764.16L.060 PSL32 - STFCL16-D11 79 60 50 16 11 TP..1103
161.764.20R.070 PSL32 - STFCR20-E11 89 70 61 20 13 TP..1103
161.764.20L.070 PSL32 - STFCL20-E11 89 70 61 20 13 TP..1103
161.764.25R.085 PSL32 - STFCR25-FX16 104 85 75 25 17 TP..1603
161.764.25L.085 PSL32 - STFCL25-FX16 104 85 75 25 17 TP..1603
162.764.16R.060 PSL40 - STFCR16-D11 84 60 49 16 11 TP..1103
162.764.16L.060 PSL40 - STFCL16-D11 84 60 49 16 11 TP..1103
162.764.20R.070 PSL40 - STFCR20-E11 94 70 59 20 13 TP..1103
162.764.20L.070 PSL40 - STFCL20-E11 94 70 59 20 13 TP..1103
162.764.25R.080 PSL40 - STFCR25-F16 104 80 40 25 17 TP..1603
162.764.25L.080 PSL40 - STFCL25-F16 104 80 40 25 17 TP..1603
162.764.32R.100 PSL40 - STFCR32-H16 124 100 91 32 22 TP..1603
162.764.32L.100 PSL40 - STFCL32-H16 124 100 91 32 22 TP..1603
  • Inserts are optional accessories. Needs to be purchased additionally.



ACCESSORIES:

INSERTSCREWWRENCH
TP..1103 M3-8.0-4.0-43 T9
TP..1603 M4-10-5.0-43 T15
