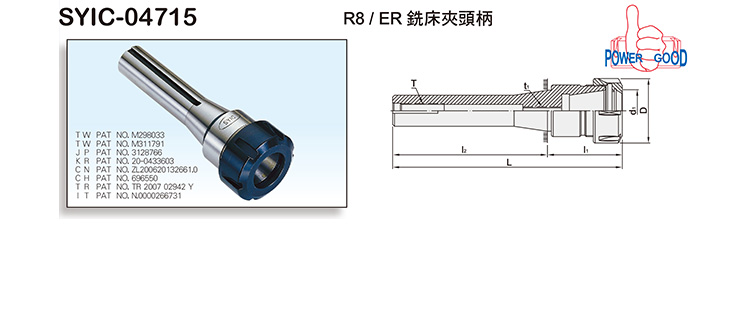

Product Name : R8/ER Collet Holder
Product Introduction
  • Steel: SCM - 21.
  • HRC: 56°.
  • Body's thread is ground precisely.
  • Each holder has been locked with a nut, but not including the spanner.
  • For a whole set, please refer to SYIC-04900.



MODEL NO.TYPE R8 x ER x I1I2LDd1t17/16" NF20WEIGHT (KGS)
SYIC - 04717 R8 x ER16A - 38 101 136 28 16 M10 x 1.5P 7/16" NF20 0.65
SYIC - 04718 R8 x ER32 - 60 101 161 50 32 M12 x 1.75P 7/16" NF20 0.9
SYIC - 04719 R8 x ER40 - 65 101 168 63 40 M16 x 2.0P 7/16" NF20 1.15
